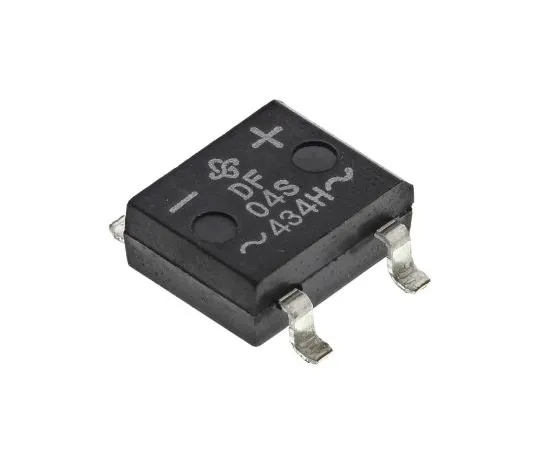

63-4898-53 Vishay DF04S-E3/77, Bridge Rectifier, 1A 400V, 4-Pin DF-S DF04S-E3/77
Electronic/Electrical Parts and Controll Equipments

63-4898-53 Vishay DF04S-E3/77, Bridge Rectifier, 1A 400V, 4-Pin DF-S DF04S-E3/77

model: 63-4898-53
brand: Vishay

Product Description

Product Model: 63-4898-53Product Brand: Vishay Features […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-4898-53
Product Brand: Vishay

Features

  • UL file E54214. Bridge Rectifiers for PCB Surface Mount, DFxxS Series, Vishay Semiconductor. High surge current capability Low DC reverse current Ideal for automated placement Printed Circuit Board (PCB) reflow soldering

Spec

  • Quantity:1piece
  • Bridge Type : Single Phase
  • Peak Average Forward Current : 1A
  • Peak Reverse Repetitive Voltage : 400V
  • Mounting Type : Surface Mount
  • Package Type : DF-S
  • Pin Count : 4
  • Configuration : Single
  • Peak Non-Repetitive Forward Surge Current : 50A
  • Maximum Operating Temperature : +150 °C
  • Minimum Operating Temperature : -55 °C
  • Peak Forward Voltage : 1.1V
  • Peak Reverse Current : 5µA
  • Length : 8.51mm
  • Height : 3.3mm
  • CODE No.:629-0237
