63-3101-71 4 Pins 2.54 mm pitch Connector ZL2543-4PS
Electronic/Electrical Parts and Controll Equipments

63-3101-71 4 Pins 2.54 mm pitch Connector ZL2543-4PS

model: 63-3101-71
brand: Linkman

Product Description

Product Model: 63-3101-71Product Brand: Linkman Feature […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-3101-71
Product Brand: Linkman

Features

  • It is also ***d for wiring the motherboard of a personal computer. 2.54 mm pitch pin header connector.

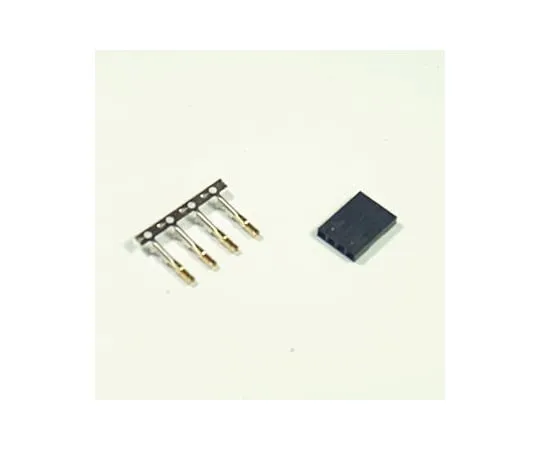

  • It is sold as a set of housing (plastic shell) + contact (metal terminal).
  • It is familiar with the part where the power switch cable is connected to the motherboard of a personal computer, but it fits to the "gold-plated corners" (pin headers) with 2.54 mm spacing on the board.
  • Since there is no erroneous insertion prevention function, it can be inserted anywhere if the pitch matches, so please be careful.
  • (There are variations in the number of pins, so please check them.)

Spec

  • Pitch: 2.54 mm
  • Connector shape: Housing contact socket set
  • Number of pins: 4 poles
  • Rating: 250 V -2.5 A
  • Compatible wire: AWG 28 to AWG 22
  • Material: Housing: PPO UL 94 V-0
  • Contact: Phosphorus bronze
  • Number of pieces: 1
  • Compatible tools: PA-09
