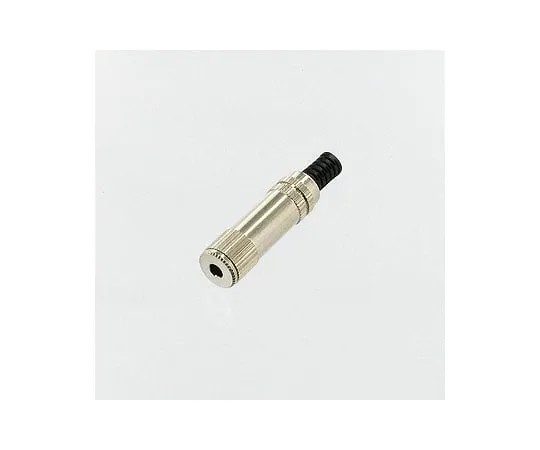

63-3101-61 3.5 mm stereo Jack WTN04F1113S
Product Description
Product Model: 63-3101-61Product Brand: Linkman Feature […]
Contact Us
Product Details
Product Model: 63-3101-61
Product Brand: Linkman
Features
- 3.5 mm diameter stereo jack for mounting wires. The body part can be removed, so please remove and solder.
- Package: PJ23
- Plug/Jack: 3.5 mm Jack
- Stereo/Mono: Stereo
- Number of poles: 3
- Format: Straight
- Terminal treatment :-
- Material: Metal
- Notes: Cord bushing included
- Insulation and non-insulation
- Panel mounted RCA pin jacks, φ3.5 jacks, etc. are divided into "Insulation type" and "Non-insulation type." What is insulated or uninsulated? When a connector is attached to a panel, it means whether the GND terminal of the connector makes contact with the panel.
- In the case of the insulated type, the GND terminal of the connector is not connected (contacted) with the panel.
- The non-insulated type is electrically connected when the panel is metallic.
- Use an insulated connector when you do not want to create a GND (ground) loop.
- * A GND loop is a loop (circle) of wiring. In particular, a loop of a GND wire is called a "GND loop." When the magnetic flux crosses the loop, a current flows through the GND line, creating a voltage that creates noise. In such cases, breaking the loop prevents noise ca***d by the interlocking of magnetic flux.
