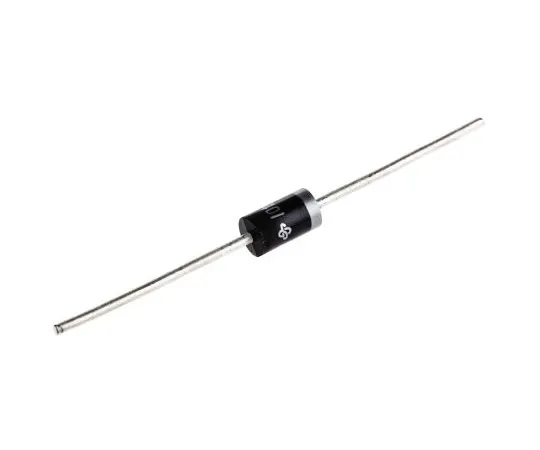

63-4898-37 Vishay 100V 3A, Diode, 2-Pin DO-201AD 1N5401-E3/54 1N5401-E3/54
Electronic/Electrical Parts and Controll Equipments

63-4898-37 Vishay 100V 3A, Diode, 2-Pin DO-201AD 1N5401-E3/54 1N5401-E3/54

model: 63-4898-37
brand: Vishay

Product Description

Product Model: 63-4898-37Product Brand: Vishay Features […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-4898-37
Product Brand: Vishay

Features

  • Vishay 1N5400-1N5408 General Purpose Plastic Rectifiers. From Vishay, 1N5400-1N5408 are a range of general purpose rectifiers. With a moulded epoxy body, this range of rectifiers have a DO-201AD package size. Features and Benefits:. Capable of managing high forward surges. Low forward voltage drop. Low leakage current. Solder dip at +245 °C for a maximum of 10 seconds. Flame retardant to UL94 V-O. > 500 ns standard recovery. Wide operating temperature range of -50 °C to +150 °C. Matte tin plated leads, solderable per J-STD-002 and JESD 22-B102. A coloured band indicates the cathode ***. Product applications:. 1N5400-1N5408 rectifiers are ideal for general purpose rectification in converters, inverters, freewheeling diodes and power supplies.

Spec

  • Quantity:1bag(10pieces)
  • Diode Configuration : Single
  • Number of Elements per Chip : 1
  • Peak Reverse Repetitive Voltage : 100V
  • Mounting Type : Through Hole
  • Package Type : DO-201AD
  • Diode Technology : Silicon Junction
  • Pin Count : 2
  • Maximum Forward Voltage Drop : 1.2V
  • Length : 9.5mm
  • Width : 5.3mm
  • Height : 5.3mm
  • Diameter : 5.3mm
  • Peak Non-Repetitive Forward Surge Current : 200A
  • CODE No.:628-9451
