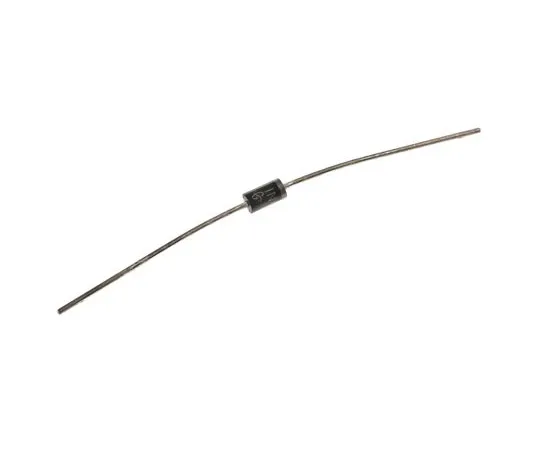

63-4898-33 Vishay 50V 1A, Diode, 2-Pin DO-204AL 1N4001-E3/54 1N4001-E3/54
Product Description
Product Model: 63-4898-33Product Brand: Vishay Features […]
Contact Us
Product Details
Product Model: 63-4898-33
Product Brand: Vishay
Features
- Vishay 1N4001-1N4007 General Purpose Plastic Rectifiers. The Vishay 1N4001 to 1N4007 range of 1A rectifier diodes are designed for general purpose applications. They come in a plastic DO-204AL (DO-41) package with 25.4mm tin-plated leads. Features: Low forward voltage drop Low leakage current High forward surge capability What is it ***d for? The 1N4001 to 1N4007 series are ideal for rectification of power supplies, inverters, converters and freewheeling diodes application. They are designed for general purpose applications so there are many possibilities. What is the operating junction temperature? -50°C to +150°C Versions Available (with repetitive peak reverse voltages): 1N4001 - 50V 1N4002 - 100V 1N4003 - 200V 1N4004 - 400V 1N4005 - 600V 1N4006 - 800V 1N4007 - 1000V
Spec
- Quantity：1bag(10pieces)
- Diode Configuration : Single
- Number of Elements per Chip : 1
- Peak Reverse Repetitive Voltage : 50V
- Mounting Type : Through Hole
- Package Type : DO-204AL
- Diode Technology : Silicon Junction
- Pin Count : 2
- Maximum Forward Voltage Drop : 1.1V
- Length : 5.2mm
- Width : 2.7mm
- Height : 2.7mm
- Diameter : 2.7mm
- Minimum Operating Temperature : -50 °C
- CODE No.:628-8931
