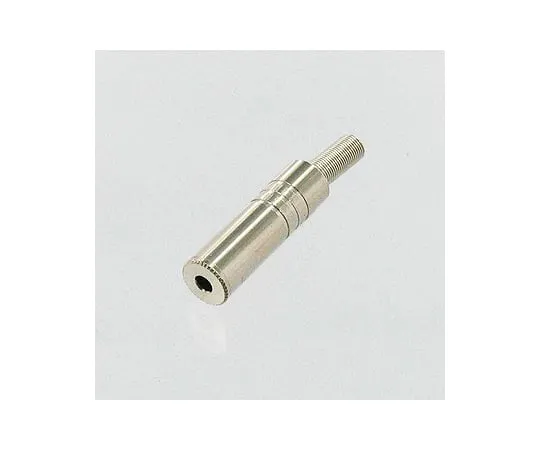

63-3101-40 3.5 mm Stereo Jack Metal WTN04F1093A

model: 63-3101-40
brand: Linkman

Product Description

Product Model: 63-3101-40Product Brand: Linkman Feature […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-3101-40
Product Brand: Linkman

Features

  • 3.5 mm diameter stereo jack for mounting wires. The body part can be removed, so please remove and solder.
  • Package :-
  • Plug/Jack: 3.5 mm Jack
  • Stereo/Mono: Stereo
  • Number of poles: 3
  • Format: Straight
  • Terminal treatment :-
  • Material: Metal
  • Notes: Cord bushing included (spring)
  • Insulation and non-insulation
  • Panel-mounted RCA pin jacks, φ3.5 jacks, etc., are divided into "Insulation type" and "Non-insulation type." What is insulated or uninsulated? When a connector is attached to a panel, it means whether the GND terminal of the connector makes contact with the panel.
  • In the case of the insulated type, the GND terminal of the connector is not connected (contacted) with the panel.
  • The non-insulated type is electrically connected when the panel is metallic.
  • Use an insulated connector when you do not want to create a GND (ground) loop.
  • * A GND loop is a loop (circle) of wiring. In particular, a loop of a GND wire is called a "GND loop." When the magnetic flux crosses the loop, a current flows through the GND line, creating a voltage that creates noise. In such cases, breaking the loop prevents noise ca***d by the interlocking of magnetic flux.

Spec
