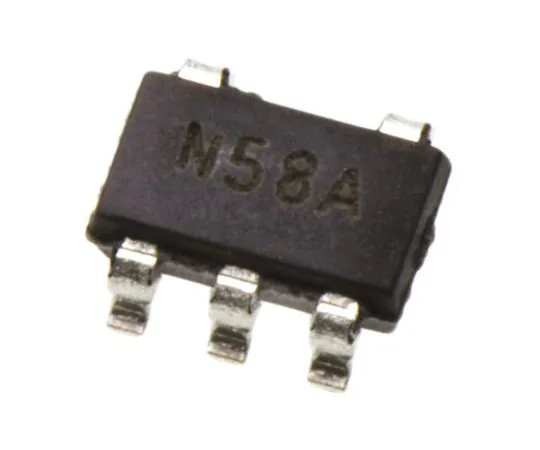

63-4897-95 Microchip TC1185-3.3VCT713, LDO Regulator, 150mA, 3.3 V, ±2.5% 5-Pin, SOT-23 TC1185-3.3VCT713
Product Description
Product Model: 63-4897-95Product Brand: Microchip Featu […]
Contact Us
Product Details
Product Model: 63-4897-95
Product Brand: Microchip
Features
- TC1185 Low Dropout Voltage Regulator
Spec
- Quantity：1bag(10pieces)
- Output Voltage : 3.3 V
- Output Type : Fixed
- Package Type : SOT-23
- Maximum Output Current : 150mA
- Mounting Type : Surface Mount
- Minimum Input Voltage : 2.7 V
- Maximum Input Voltage : 6 V
- Pin Count : 5
- Number of Outputs : 1
- Quiescent Current : <0.0005mA
- Accuracy : ±2.5%
- Minimum Operating Temperature : -40 °C
- Maximum Operating Temperature : +125 °C
- Height : 1.3mm
- CODE No.:628-3661
