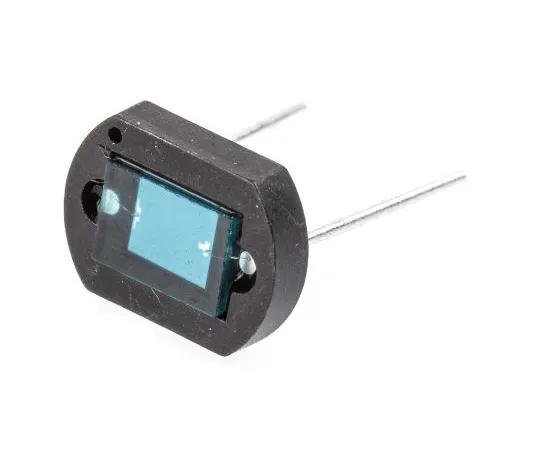

63-4897-86 Excelitas Technologies, VTB8440BH Visible Light Si Photodiode, Through Hole Ceramic VTB8440BH
model:
63-4897-86
brand:
Excelitas Technologies
Product Description
Product Model: 63-4897-86Product Brand: Excelitas Techn […]
Contact Us
Product Details
Product Model: 63-4897-86
Product Brand: Excelitas Technologies
Features
- VTB8440B Photodiode. These VTB process photodiodes, from EG ; G Vactec, are in recessed ceramic packages. They also incorporate an infrared (IR) rejection filter. The VTB Series offer high shunt resistance and a good blue response.. Features of the VTB8440B photodiodes: Ceramic package Through-hole mounting Active area dimensions: 5.16 mm² Operating temperature: -20 to +75 °C Angle of half intensity: 50°
Spec
- Quantity：1piece
- Spectrums Detected : Visible Light
- Wavelength of Peak Sensitivity : 580nm
- Package Type : Ceramic
- Mounting Type : Through Hole
- Number of Pins : 2
- Diode Material : Si
- Minimum Wavelength Detected : 330nm
- Maximum Wavelength Detected : 720nm
- Height : 7.87mm
- CODE No.:627-8366
