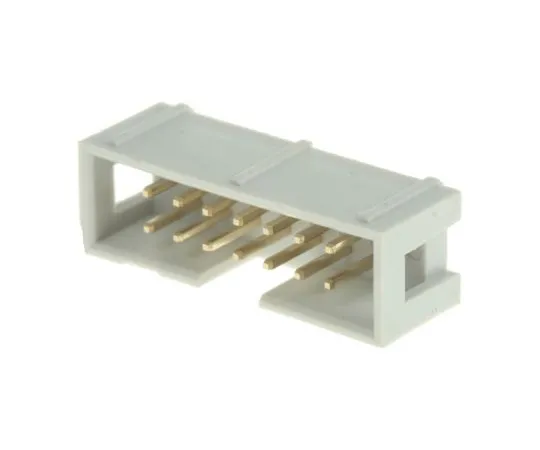

63-4897-46 RS 14-Way IDC Connector Plug for Through Hole Mount, 2-Row 625-7274
Product Description
Product Model: 63-4897-46Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-4897-46
Product Brand: RS PRO
Features
- Overall header length = 7.9 + (no. of ways x 2.54) mm. Boxed Headers. 2-row boxed headers compatible with BT224 type bump polarised and universal sockets Polyester mouldings to UL94-V with gold plated copper alloy contacts Solder spill connections on a 0.1in grid will be suitable for standard 1.6mm thick PCBs
Spec
- Quantity：1piece
- Number of Contacts : 14
- Number of Rows : 2
- G***er : Male
- Pitch : 2.54mm
- Mounting Type : Through Hole
- Body Orientation : Straight
- Termination Method : IDC
- Current Rating : 1A
- Contact Plating : Gold
- Minimum Operating Temperature : -45°C
- Maximum Operating Temperature : +105°C
- Contact Material : Copper Alloy
- CODE No.:625-7274
Related product recommendations
You may also be interested in the following products
Electronic/Electrical Parts and Controll Equipments

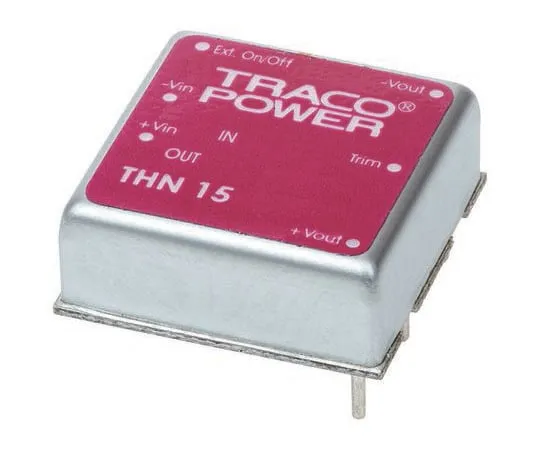

63-8323-91 TRACOPOWER THN 15WI 15W Isolated DC-DC Converter Through Hole, Voltage in 18 → 75 V dc, Voltage out 12V dc THN 15-4812WI
