Electronic/Electrical Parts and Controll Equipments

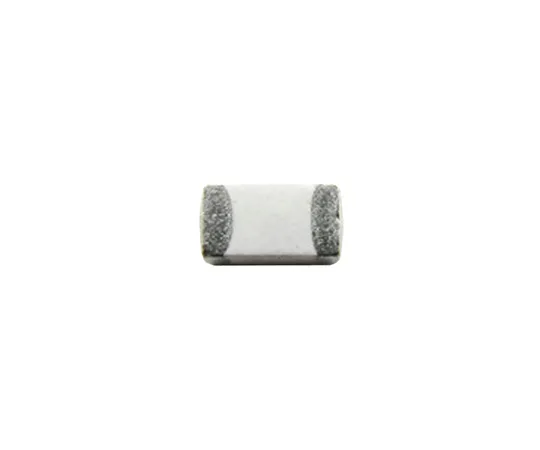

63-4896-70 Littelf*** 1.25A T Surface Mount F***, 63V 1206SFS125F/63-2
Product Description
Product Model: 63-4896-70Product Brand: Littelfuse Feat […]
Contact Us
Product Details
Product Model: 63-4896-70
Product Brand: Littelfuse
Features
- UL. Tyco Slow-blow 1206 SFS Series Chip F***s. Tyco Raychem brand slow-blow chip f***s **** provide overcurrent protection on systems that experience large and frequent current surges as part of their normal operation. The monolithic, multilayer design offers some of the highest current ratings available in this footprint and enhances high-temperature performance in a wide range of circuit protection designs. Applications include power supplies, capacitor filter banks, LCD backlight inverters, electric motors and portable electronics. Time-delayed design prevents nuisance openings in pulsed and high inrush current applications Small size with high current ratings Strong arc suppression characteristics Operating temperature range -55 → +125°C
Spec
- Quantity：1bag(10pieces)
- Current Rating : 1.25A
- Voltage Rating : 63V
- Length : 3.2mm
- Width : 1.6mm
- Height : 1.1mm
- Dimensions : 3.2 x 1.6 x 1.1mm
- F*** Speed : T
- Body Material : Ceramic
- Breaking Capacity at Maximum Voltage Rating : 50 A
- Minimum Operating Temperature : -55°C
- Maximum Operating Temperature : +125°C
- Terminal Material : Nickel, Silver, Tin
- Operating Temperature Range : -55 → +125 °C
- CODE No.:624-3051
