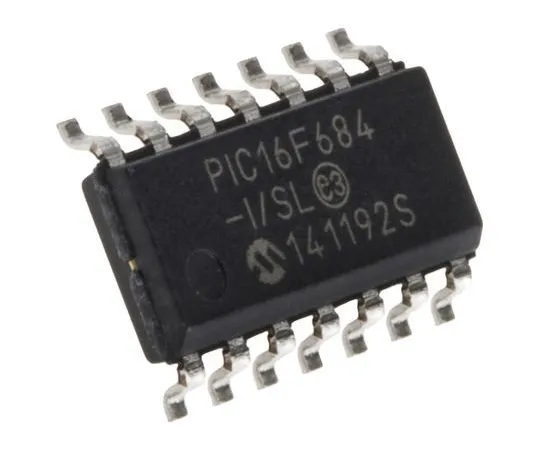

63-4895-70 Microchip PIC16F684-I/SL, 8bit PIC Microcontroller, 20MHz, 2048 x 14 words, 256 B Flash, 14-Pin SOIC PIC16F684-I/SL
Electronic/Electrical Parts and Controll Equipments

63-4895-70 Microchip PIC16F684-I/SL, 8bit PIC Microcontroller, 20MHz, 2048 x 14 words, 256 B Flash, 14-Pin SOIC PIC16F684-I/SL

model: 63-4895-70
brand: Microchip

Product Description

Product Model: 63-4895-70Product Brand: Microchip Featu […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-4895-70
Product Brand: Microchip

Features

  • PIC16F684 8-Bit Flash Microcontrollers. The PIC16F range of microcontrollers from Microchip are 8-bit MCUs that incorporate Microchip s PIC® architecture into a variety of pin and package options, from space efficient 14-pin devices to feature-rich 64-pin devices. Devices with Baseline, Mid-Range or Enhanced Mid-Range architecture are available with numerous different peripheral combinations, giving designers flexibility and choice for their applications. The PIC16F684 family of microcontrollers is based upon Microchip s Mid-range core with an 8 level deep hardware stack and 35 instructions. These MCUs provide up to 5 MIPS, 3.5 Kbytes program memory, 128 bytes RAM and Data EEPROM of 256 bytes. On board is a configurable oscillator factory calibrated to ±1% accuracy. Microcontroller Features. 20 MHz Max. CPU Speed 35 Instructions 8 Level Hardware Stack 8 MHz Internal Oscillator – Selectable frequency range 8 MHz to 125 kHz 12 I/O Pins Power-On Reset (POR) Power-Up Timer (PWRT) Oscillator Start-Up Timer (OST) Brown-Out Reset (BOR) Watchdog Timer (WDT) In-Circuit Serial Programming (ICSP). Peripherals. 10-bit Analogue to Digital Converter (ADC) – 8 Channels Two Comparators Two 8-bit Timers One 16-bit Timer Enhanced Capture, Compare, PWM Module

Spec

  • Quantity:1piece
  • Family Name : PIC16F
  • Package Type : SOIC
  • Mounting Type : Surface Mount
  • Pin Count : 14
  • Device Core : PIC
  • Data Bus Width : 8bit
  • Program Memory Size : 2048 x 14 words, 256 B
  • Maximum Frequency : 20MHz
  • RAM Size : 128 B
  • USB Channels : 0
  • ADC Channels : 8
  • Number of SPI Channels : 1
  • Typical Operating Supply Voltage : 2 → 5.5 V
  • Number of PCI Channels : 0
  • CODE No.:623-0370
