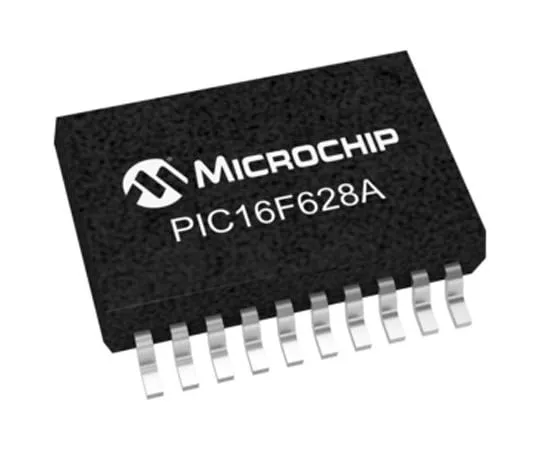

63-4895-66 Microchip, 8bit PIC Microcontroller, 20MHz, 2048 x 14 words, 128 B Flash, 20-Pin SSOP PIC16F628A-I/SS
Product Description
Product Model: 63-4895-66Product Brand: Microchip Featu […]
Contact Us
Product Details
Product Model: 63-4895-66
Product Brand: Microchip
Features
- PIC16F627A/628A/648A Microcontrollers. The PIC16F range of Microcontrollers from Microchip are 8-bit MCUs that incorporate Microchip s PIC® architecture into a variety of pin and package options, from space efficient 14-pin devices to feature-rich 64-pin devices. Devices with Baseline, Mid-Range or Enhanced Mid-Range architecture are available with numerous different peripheral combinations, giving designers flexibility and choice for their applications. The PIC16F627A/628A/648A family of Microcontrollers is based upon Microchip s Mid-Range core with an 8 level deep hardware stack and 35 instructions. These MCUs provide up to 5 MIPS, up to 3.5 Kbytes program memory, 224 bytes RAM and Data EEPROM of up to 128 bytes. On board is an oscillator factory calibrated to ±1% accuracy. Microcontroller Features. 20 MHz Max. CPU Speed 35 Instructions 8 Level Hardware Stack 16 I/O Pins Power-On Reset (POR) Power-Up Timer (PWRT) Oscillator Start-Up Timer (OST) Brown-Out Reset (BOR) Watchdog Timer (WDT) Low Voltage Programming (LVP) In-Circuit Serial Programming (ICSP). Peripherals. Two Comparators Capture/Compare/PWM Module Two 8-bit Timers One 16-bit Timer
Spec
- Quantity:1piece
- Family Name : PIC16F
- Package Type : SSOP
- Mounting Type : Surface Mount
- Pin Count : 20
- Device Core : PIC
- Data Bus Width : 8bit
- Program Memory Size : 2048 x 14 words, 128 B
- Maximum Frequency : 20MHz
- RAM Size : 224 B
- USB Channels : 0
- Number of PWM Units : 1
- Number of SPI Channels : 0
- Typical Operating Supply Voltage : 3 → 5.5 V
- Number of CAN Channels : 0
- CODE No.:623-0308
