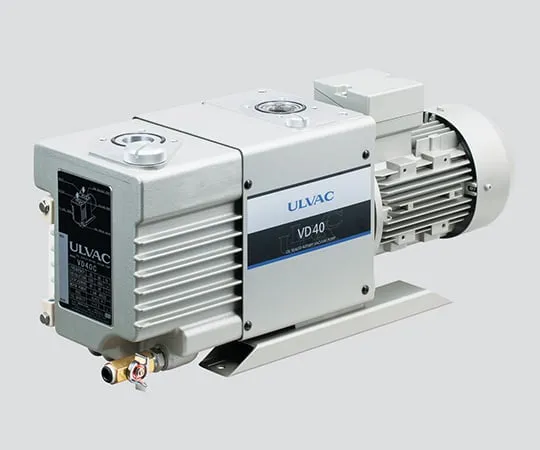

3-6055-02 Oil-Sealed Rotary Vacuum Pump 670L/Min VD40C
laboratoryinstruments

3-6055-02 Oil-Sealed Rotary Vacuum Pump 670L/Min VD40C

model: 3-6055-02
brand: ULVAC, Inc.

Product Description

Product Model: 3-6055-02Product Brand: ULVAC, Inc. Feat […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 3-6055-02
Product Brand: ULVAC, Inc.

Features

  • High efficiency(IE3) multiple voltage motor is included as standard.
  • Air cooling type requiring no cooling water.
  • Oil mist trap(TM201・TM401) collects oil smoke in exhaust gas.

Spec

  • Model number: VD40C-02211-19040011
  • Exhaust speed (L/min): 670/800(50/60Hz)
  • Output (Kw): 1.5
  • Achieving pressure: Gas ballast port close/? 0.67Pa, Gas ballast port open/? 2.0Pa
  • Inlet, exhaust port: VG40 (KF40 is supported with a separately available option)
  • Oil volume: 1.0 - 2.5L
  • Power supply: 50Hz/200 - 240/380 - 415V, 60Hz/200 - 240/380 - 460V
  • Size: 210 x 680 x 324mm
  • Weight: 60kg
