Features

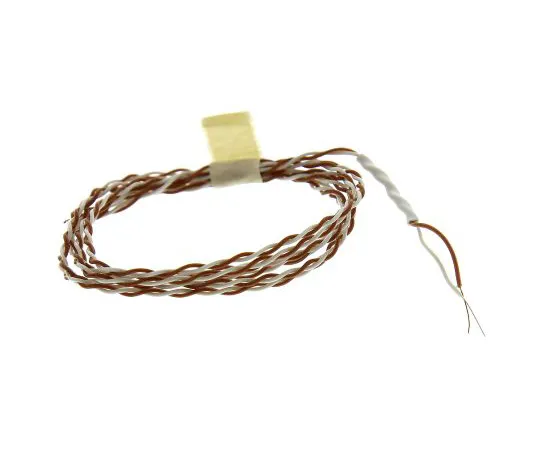

• IEC-BS 4937 60584-2 ; IEC-BS 4937 60584-3. RS Pro IEC PTFE Grounded Welded Tip Wire Thermocoupless. From RS Pro a range of Type J, K, N and T wire type thermocouple temperature sensors that conform to IEC 60584. These thermocouples have a welded grounded junction for a fast response time and leads with a durable PTFE insulation. How does a Thermocouple Work?. A thermocouple is a sensor ***d to measure temperature in a range of different processes and consists of two wire legs made from different metals joined together at their two ***s to form two junctions. The hot, or measuring junction is connected to the body whose temperature is going to be measured. The cold junction or reference junction is connected to a body of known temperature. When the measuring junction is placed on something hot a voltage or potential difference between this and the reference junction occurs. This voltage can then be converted into a temperature measurement using thermocouple reference tables. This process is also known as the Seebeck Effect. Welded Grounded Junction. In a welded grounded junction the two thermocouple wires and sheath are welded together to form one junction at the probe tip. These thermocouples have a fast response time beca*** all the thermocouple is making contact with the sheath allowing the heat to transfer easily. Key Features and Benefits. Welded grounded junction with fast response Conform to IEC 60584 standards PTFE insulated leads for for resistance to oils, acid, fluids and good mechanical strength and flexibility. Applications. These grounded junction Type J, K, N and T wire thermocouples are Ideal for test and development applications including test and measurement, temperature mapping and OEM applications
