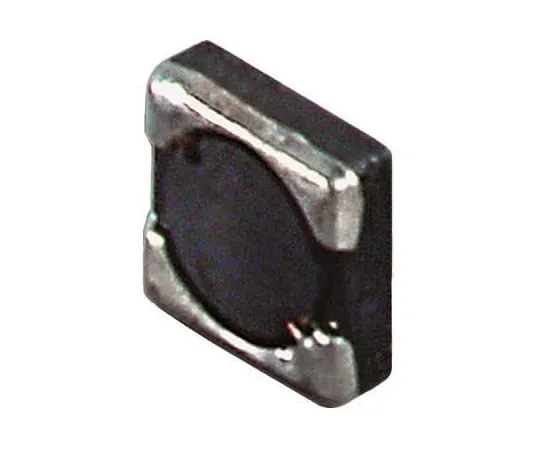

63-4893-21 Wurth WE-TPC Series Type 5828 Shielded Wire-wound SMD Inductor with a Ferrite Core, 10 μH ±30% Wire-Wound 1.5A Idc 744053100
model:
63-4893-21
brand:
Wurth Elektronik
Product Description
Product Model: 63-4893-21Product Brand: Wurth Elektroni […]
Contact Us
Product Details
Product Model: 63-4893-21
Product Brand: Wurth Elektronik
Features
- WE-TPC Series 5.8mm Square Magnetically Shielded Wire Wound Chokes. WE-TPC Series is extremely flat power inductor with high current capability Magnetically shielded which results in a low leakage field Operating temperature: –40 to +125°C Applications: Portable power (e.g. PDA, digital camera, PCMCIA cards and displays); DC/DC converter; Embedded PC; Mobile data gathering, telemetric
Spec
- Quantity：1piece
- Inductance : 10 μH
- Maximum DC Current : 1.5A
- Package/Case : 5828
- Length : 5.8mm
- Depth : 5.8mm
- Height : 2.8mm
- Dimensions : 5.8 x 5.8 x 2.8mm
- Shielded : Yes
- Tolerance : ±30%
- Maximum DC Resistance : 70mΩ
- Series : WE-TPC
- Core Material : Ferrite
- Maximum Self Resonant Frequency : 35MHz
- Minimum Operating Temperature : -40°C
- CODE No.:617-1029
