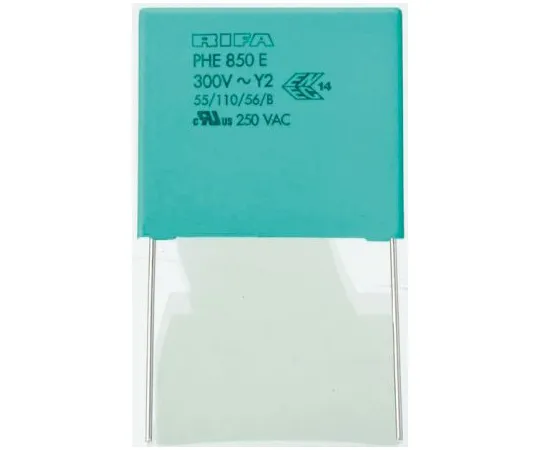

63-4893-11 KEMET 1nF Polypropylene Capacitor PP 1.25 kV dc, 300 V ac ±20% Tolerance Through Hole PHE850 Series PHE850EA4100MA06R17
Product Description
Product Model: 63-4893-11Product Brand: KEMET Features […]
Contact Us
Product Details
Product Model: 63-4893-11
Product Brand: KEMET
Features
- Capacitors are designed for connecting directly across a mains supply. However, they must NOT be ***d in positions where failure of a capacitor would expose anybody to electric shock. ENEC, UL, CSA. PHE850 Series. The PHE850 series of film capacitors from KEMET features a winding metallised polypropylene film construction, encapsulated in self-extinguishing material that meets UL 94V-0 requirements. These capacitors are suitable for *** as interference in Y2 applications but are appropriate to *** in series with the mains. Metallised polypropylene film construction Self-extinguishing material Small dimensions Low profile options EMI suppressor To be ***d in Y2 (line-to-earth) applications
Spec
- Quantity：1bag(25pieces)
- Capacitance : 1nF
- Voltage : 1.25 kV dc, 300 V ac
- Mounting Type : Through Hole
- Tolerance : ±20%
- Series : PHE850
- Lead Pitch : 10mm
- Suppression Class : Y2
- Length : 13mm
- Depth : 4mm
- Height : 8mm
- Dimensions : 13 x 4 x 8mm
- Dielectric : Metallized Polypropylene
- Lead Diameter : 0.6mm
- CODE No.:616-7878
