Electronic/Electrical Parts and Controll Equipments

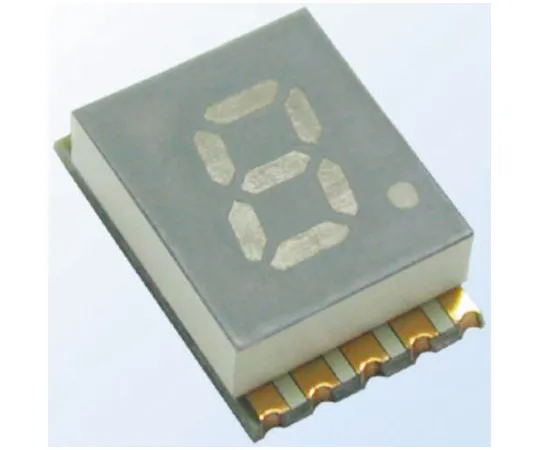

63-4892-97 KCSC04-105 Kingbright 7-Segment LED Display, CC Red 27 mcd RH DP 10.2mm KCSC04-105
Product Description
Product Model: 63-4892-97Product Brand: Kingbright Feat […]
Contact Us
Product Details
Product Model: 63-4892-97
Product Brand: Kingbright
Features
- Kingbright Single Digit, 9.1 to 10.9mm. A range of single-digit 7-segment LED displays from Kingbright. The displays exhibit excellent visibility with high on/off contrast, and are available in a range of colours. Low current operation Excellent character appearance Grey face with white segments Easy mounting on P.C. boards or sockets Categorized for luminous intensity Mechanically rugged RoHS compliant
Spec
- Quantity：1bag(5pieces)
- Display Type : 7-Segment
- Number of Characters : 1
- LED Colours : Red
- Number of Segments : 7
- Dominant Wavelength : 630 nm
- Character Width : 5.6mm
- Character Height : 10.2mm
- Common Connection : Cathode
- Mounting Type : Surface Mount
- External Dimensions : 15 x 9.1 x 3.75mm
- Luminous Intensity : 27 mcd
- Colour of Face : Grey
- Power Dissipation : 75mW
- Decimal Orientation : Right Side
- CODE No.:616-5535
