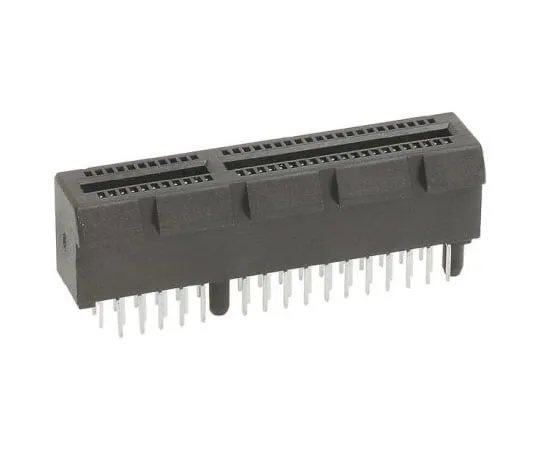

63-4892-54 Amphenol FCI 64 Way PCI, PCIe PCI Card Connector With Solder Termination 10018783-11111TLF
Product Description
Product Model: 63-4892-54Product Brand: Amphenol FCI Fe […]
Contact Us
Product Details
Product Model: 63-4892-54
Product Brand: Amphenol FCI
Features
- UL94V-0. PCI Express Edge Connectors. Vertical Card Edge connectors for PCI Express technology on a 1.00mm pitch. Offer 1,4,8 or 16 serial PCI Express links to scale different bandwith requirements Each serial link supports 2.5Gbps (per direction) Retention locks available (see ; 615-9546 615-9546 )
Spec
- Quantity：1bag(5pieces)
- Card Type : PCI, PCIe
- G***er : Female
- Number of Contacts : 64
- Number of Rows : 2
- Pitch : 2mm
- Body Orientation : Straight
- Mounting Type : Through Hole
- Contact Material : Copper Alloy
- Contact Plating : Gold over Nickel
- Termination Method : Solder
- Housing Material : Nylon
- Length : 39mm
- Width : 11.25mm
- Depth : 8.8mm
- Minimum Operating Temperature : -55°C
- CODE No.:615-9524
