63-4891-68 TDK VLCF Series Shielded Wire-wound SMD Inductor 2.2 μH ±30% Wire-Wound 2.76A Idc VLCF5020T-2R2N2R6-1
Product Description
Product Model: 63-4891-68Product Brand: TDK Features VL […]
Contact Us
Product Details
Product Model: 63-4891-68
Product Brand: TDK
Features
- VLCF5020 Series Magnetically Shielded Wire Wound Chokes. Professional series of TDK surface mount power inductor from the VLCF range which offers magnetic shield type wound inductor for power circuits. Features and Benefits:. High magnetic shield construction Generic *** portable DC to DC converter line Test frequency = 100 kHz. Applications:. Power source inductor for mobile devices such as HDDs, DVCs, and DSCs. LCD displays and other DC to DC converters.
Spec
- Quantity：1bag(5pieces)
- Inductance : 2.2 μH
- Maximum DC Current : 2.76A

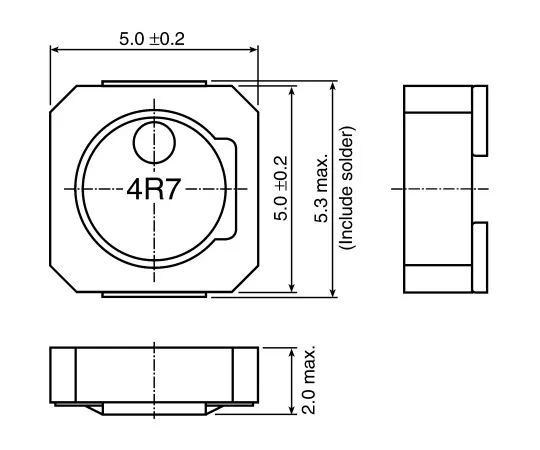

- Length : 5.3mm
- Depth : 5mm
- Height : 2mm
- Dimensions : 5.3 x 5 x 2mm
- Shielded : Yes
- Tolerance : ±30%
- Maximum DC Resistance : 71mΩ
- Series : VLCF
- Inductor Construction : Wire-Wound
- CODE No.:614-2885
