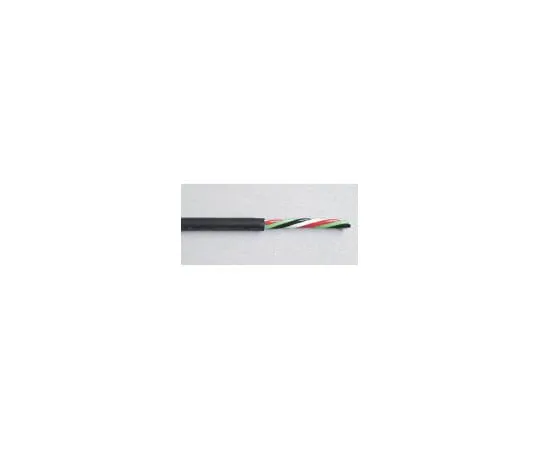

62-0682-72 Durable Power Supply Cable for Robot KDF-L (0.75Sq Outer Diameter 7.0mm) 1m KDF-L0.75SQ-4C
Product Description
Product Model: 62-0682-72Product Brand: FA Ubon Feature […]
Contact Us
Product Details
Product Model: 62-0682-72
Product Brand: FA Ubon
Features
- UL/cUL Standard Cable
- Oil Resistant, Flexion Resistant
- Application: Cable Bare Wiring
Spec
- Cut length: 1m
- Format: KDF-L 4C-0.75sq
- Conductor section size: 0.75sq
- Conductor configuration (piece/mm): 7/22/0.08
- Outer diameter: 7.0mm
- Allowable current: 11A
- Rating voltage: 300V
- Rating temperature: 105℃
- Test voltage: AC2000V, 1 min
- Fire retardancy: VW-1, FT1
- Applicable standard: UL AWM STYLE 2517 CAN/CSA-C22.2 No210
