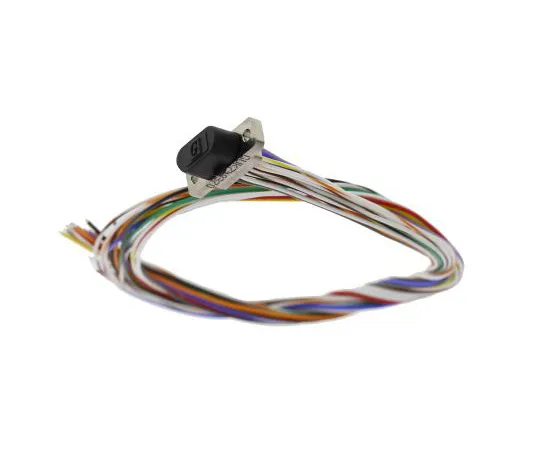

63-4890-78 AV Cable 15 Way Male Micro D-Sub to Free End Free End MWDM2L-15P-6E5-18
Product Description
Product Model: 63-4890-78Product Brand: Glenair Feature […]
Contact Us
Product Details
Product Model: 63-4890-78
Product Brand: Glenair
Features
- 450mm (18 inches) of Colour Coded Wiring. Glenair MWDM Series COTS Micro-D Plug and Socket Connectors with Pigtail Wire Termination. MWDM series COTS (Commercial Off The Shelf) Micro-D plug and socket connectors with mil spec colour-coded pre-wired pigtail terminations. Their rugged design ensures outstanding performance in extreme conditions, and a high resistance to shock and vibration. These Micro-D plug and socket connectors have gold plated TwistPin contacts that have a robust design and superior wire attachment resulting in low contact resistance, the sleeves of these TwistPin contacts allow a gas tight crimp to be formed. The bodies of these MWDM Micro-D connectors are made from nickel plated aluminium with an LCP insulator and can withstand up to 125°C operating temperature in demanding environments. MWDM Micro-D connectors are also environmentally sealed via epoxy sealing and interfacial seals. The wire terminations of these Micro-D plug and socket connectors are 26 AWG and 18 inches in length.
Spec
- Quantity:1piece
- Connector A : 15 Way Male Micro D-Sub
- Connector B : Free End
- Cable Type : Insulated
- CODE No.:612-6489
