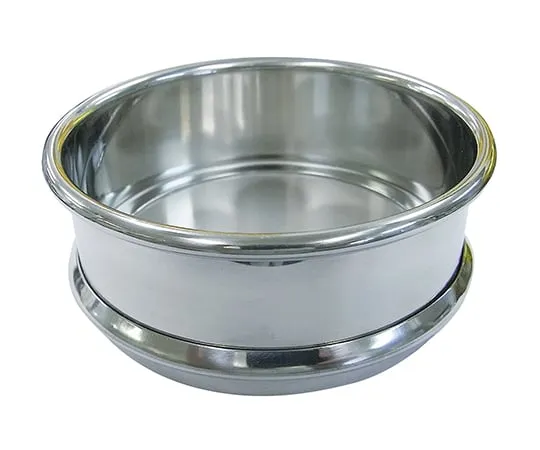

3-6820-01 High Accuracy Electroformed Sieve (Nickel Filter) (JIS) Opening Dimension 30μm Pitch 45μm S30H30JIS
Product Description
Product Model: 3-6820-01Product Brand: AS ONE Corporati […]
Contact Us
Product Details
Product Model: 3-6820-01
Product Brand: AS ONE Corporation
Features
- A highly accurate sieve realized by combining X-ray lithography technology and advanced electroforming technology.
- High speed dispensing is possible with a sieve without mesh in the mesh part, and powder does not accumulate in the gap.
- Corrosive powder particles can be accommodated by applying high corrosion resistance materials.
- It is safe to *** with a certificate of inspection.
Spec
- Model number: S30H30 (JIS)
- Opening dimensions (μm): 30
- Pitch (μm): 45
- Material: Filter part/nickel, Frame part/stainless steel (SUS304)
- Frame standards: JIS/JISZ8801-1 (φ75mm) compliance, ISO/ISO3301-1 (φ75mm) compliance, ASTM/ASTM E11 (φ76mm) compliance
- Hole shape: □
- Hole Diameter intersect: +/- 0.5μm (+/- 0.8μm for 15μm or more)
- Accessories: Inspection certificate
- Frame: JIS
- Compliance Standards: Z8801
- Inner diameter (mm): 75
- Inner high (mm): 20
- Outer high (mm): 26
- Material: SUS304
- *Hole shape ○ is also available.
- *H50 Series with low aperture ratio and stronger, thick mesh is also available.
- *Adding support mesh (0.21mm □ 1.8mmP) is also available. Please contact with us.
