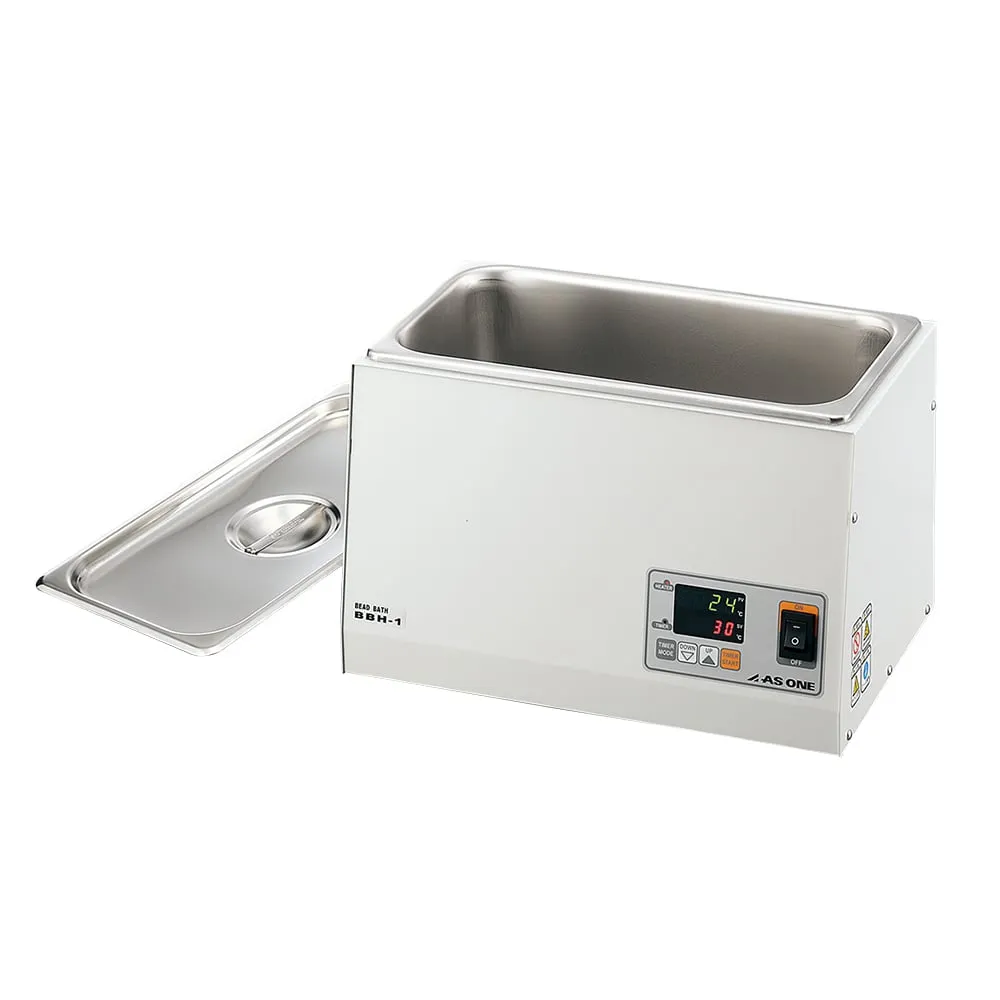

3-6770-01 Beads Bath Hot BBH-1
Product Description
Product Model: 3-6770-01Product Brand: AS ONE Corporati […]
Contact Us
Product Details
Product Model: 3-6770-01
Product Brand: AS ONE Corporation
Features
- It is free from troublesome waste liquid treatment.
- By using aluminum beads as a heat medium, specimens can be easily heated without using liquids such as water and oil.
- Since it doesn't *** liquid, it doesn't stain the surroundings and is convenient for cleaning up.
- Economical by using aluminum beads repeatedly. Allows you to keep the angle and depth of the insert free.
- A lid made of SUS304 is standard as a measure to prevent external disturbances and heat loss and to save energy.
Spec
- Model number: BBH-1
- Specification: Hot
- Temperature settings range (℃): Room temperature +5 - 150
- External dimensions: 335 x 216 x 222mm
- Chamber dimensions: 300 x 150 x 150mm
- Body weight: Approx 7.5kg
- Heating and cooling capacity: Sheathed heater 705W
- Temperature control system: PID control
- Temperature sensor: K class thermocouple
- Material: Body/SPCC, Water tank, cover/stainless steel (SUS304)
- Withstand load: 8kg
- Power supply: 100VAC 50/60Hz with 2P <-> 3P conversion plug
- Power consumption: Approx 750W
- Safety mechanism Overcurrent protection f***, manual reset type bimetal
- *As this machine is for beads, it cannot contain liquid contacting the water tank.
