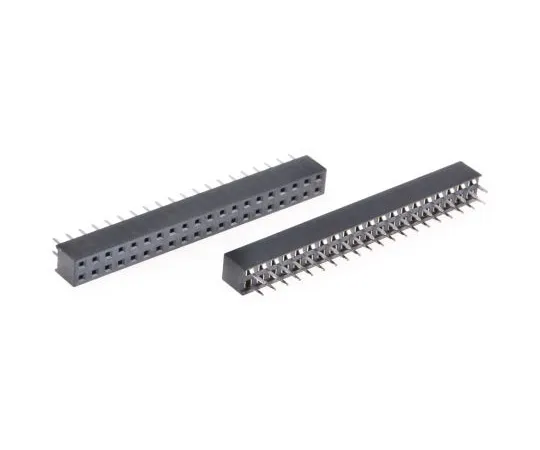

63-4886-70 HARWIN 2mm Pitch 40 Way 2 Row Straight PCB Socket, Through Hole, Solder Termination M22-7142042

model: 63-4886-70
brand: HARWIN

Product Description

Product Model: 63-4886-70Product Brand: HARWIN Features […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-4886-70
Product Brand: HARWIN

Features

  • Harwin M22 Series 2 mm PCB Sockets. M22 series PCB through hole mounting industry standard sockets with a fine 2.mm pitch designed for *** in board to board applications. With a high quality, compact design these M22 series connectors meet the design requirements for increased PCB density and height restrictions. The housings of these M22 sockets are made from UL94V-0 high temperature Liquid Crystal Polymer and withstand the same reflow soldering processes as SMT versions. Highly durable gold plated dual beam contacts offer an improved electrical connection and increase the overall connector reliability. These M22 PCB socket connectors are available in single and double row configurations and various contact numbers. Features ; Benefits. Fine 2 mm pitch Compact design High temperature thermoplastic housings Highly reliable dual beam contacts Up to 300 mating operations Current rating of up to 2A per contact. Product Application Information. These M22 series PCB sockets are suitable for *** in a wide range of applications and established as standard connectors on embedded PCs, motherboards and large electronic systems. Applications include consumer electronics, communications, drives and controls, industrial monitoring and personal computing

Spec

  • Quantity:1bag(5pieces)
  • Number of Contacts : 40
  • Number of Rows : 2
  • Pitch : 2mm
  • Type : Socket Strip
  • Mounting Type : Through Hole
  • Body Orientation : Straight
  • Termination Method : Solder
  • Current Rating : 1A
  • Voltage Rating : 500 V ac
  • Contact Material : Phosphor Bronze
  • CODE No.:605-8724
