Electronic/Electrical Parts and Controll Equipments

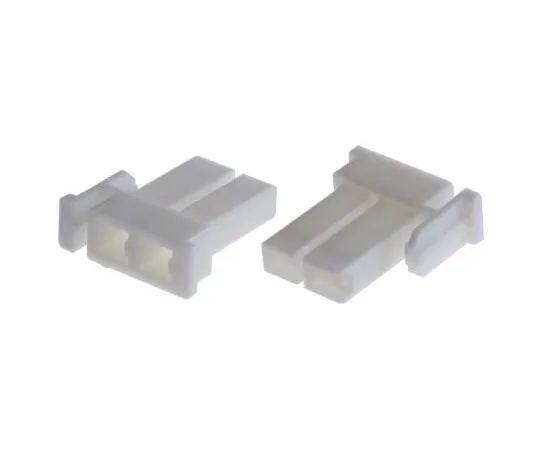

63-4882-89 JST XL Male Connector Housing, 2 Way, 1 Row XLP-02V
Product Description
Product Model: 63-4882-89Product Brand: JST Features UL […]
Contact Us
Product Details
Product Model: 63-4882-89
Product Brand: JST
Features
- UL, CSA, TUV
- Connector XL housing for substrate
- The XL connectors can be ***d for wire-to-wire or wire-to-board connections
- Since all contacts are individually and surrounded by housing walls, and since the connector pitch is 5.0 mm (. 197"), the creep and space distances between the contacts are large enough to meet stringent safety requirements
- The box-shaped contact is adaptable to a wide range of applications, from low voltage, low-current signal circuits to power supply circuits
- Features; Benefits Reliable housing construction Easy contact insertion Box-shaped contact Two kinds of connections
Spec
- Quantity：1bag(10pieces)
- Number of Contacts : 2
- Number of Rows : 1
- G***er : Male
- Mounting Type : Cable Mount
- Series : XL
- For Use With : Disconnectable Crimp Wire-to-Wire Connector
- Body Orientation : Straight
- Depth : 18.7mm
- Housing Material : Nylon
- CODE No.:602-8622
