Electronic/Electrical Parts and Controll Equipments
63-4880-90 Semi-Fixed Resistor 1 kΩ 0.1 W 1 Bag (5 Pieces) ST-2A1kOhm
model:
63-4880-90
brand:
Copal Electronics
Product Description
Product Model: 63-4880-90Product Brand: Copal Electroni […]
Contact Us
Product Details
Product Model: 63-4880-90
Product Brand: Copal Electronics
Features

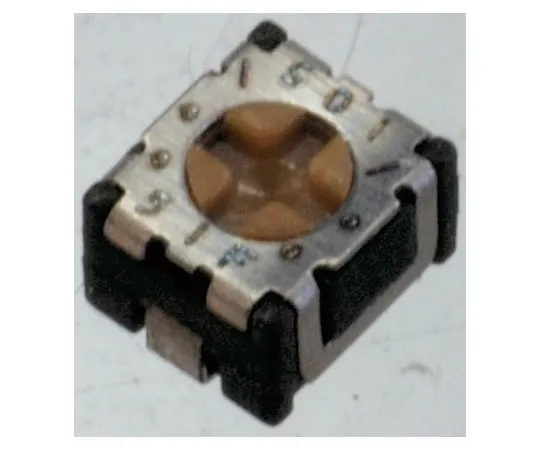

- Cermet Trimmer ST-2 Series
- Small, Thin 2 mm Type Single Rotation Trimmer Can be soldered by solder reflow Sealed structure and washable Lead-free, Cadmium-free
Spec
- Number of Pieces: 1 Bag (5 Pieces)
- Maximum resistance: 1 kΩ
- Mounting type: surface mount
- Speed: 1
- bearing: top adjustment
- Rated power: 0.1 W
- Series: ST-2A
- *** styles: J-Hook
- Tolerance: +/- 20%
- Temperature coefficient: +/- 150ppm/deg. C
- Shaft Diameter: 1.5 mm
- Operating temperature Min: -55°C
- Operating temperature mAx: +125°C
- RoHS Compliance Status: Compliance
- Securities Code: 602-5617
