Electronic/Electrical Parts and Controll Equipments
63-4880-75 Semi-Fixed Resistor 20 kΩ 0.25 W 1 Bag (5 Pieces) SM-42X20kOhm
model:
63-4880-75
brand:
Copal Electronics
Product Description
Product Model: 63-4880-75Product Brand: Copal Electroni […]
Contact Us
Product Details
Product Model: 63-4880-75
Product Brand: Copal Electronics
Features

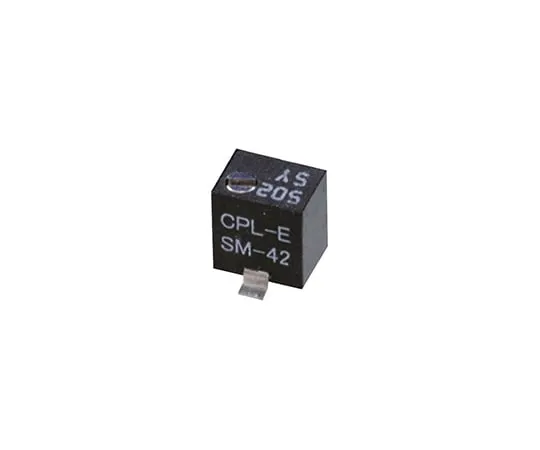

- Cermet Trimmer SM-42 Series (11 Rotation Type)
- Multi-rotation trimmer (11 rotations) Fine adjustment. Can be soldered by solder reflow. Sealed structure and washable. Lead-free, cadmium-free.
Spec
- Number of Pieces: 1 Bag (5 Pieces)
- Maximum resistance: 20 kΩ
- Mounting type: surface mount
- Speed: 11
- bearing: top adjustment
- Rated power: 0.25 W
- Series: SM-42
- *** styles: gulling
- Tolerance: +/- 10%
- Temperature coefficient: +/- 100ppm/deg. C
- Depth: 3.5 mm
- Operating temperature Min: -65°C
- Operating temperature mAx: +150°C
- RoHS Compliance Status: Compliance
- Securities Code: 602-5005
