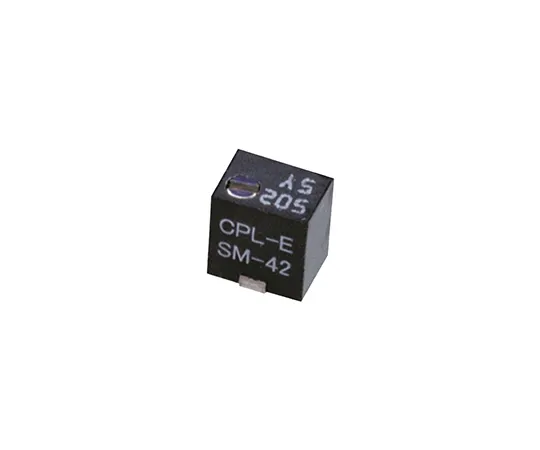

63-4880-70 Semi-Fixed Resistor 50 kΩ 0.25 W 1 Bag (5 Pieces) SM-42W50kOhm
model:
63-4880-70
brand:
Copal Electronics
Product Description
Product Model: 63-4880-70Product Brand: Copal Electroni […]
Contact Us
Product Details
Product Model: 63-4880-70
Product Brand: Copal Electronics
Features
- Cermet Trimmer SM-42 Series (11-Turn model)
- 4.8mm Multi-turn trimmer (11-turn) Precision adjustment is possible Suitable for reflow soldering Sealed (washable) design Lead and cadmium free construction
Spec
- Number of Pieces: 1 Bag (5 Pieces)
- Maximum resistance: 50 kΩ
- Mounting type: surface mount
- Speed: 11
- bearing: top adjustment
- Rated power: 0.25 W
- Series: SM-42
- *** styles: J-Hook
- Tolerance: +/- 10%
- Temperature coefficient: +/- 100ppm/deg. C
- Height: 5.1 mm
- Operating temperature Min: -65°C
- Operating temperature mAx: +150°C
- RoHS Compliance Status: Compliance
- Securities Code: 602-4917
