Electronic/Electrical Parts and Controll Equipments

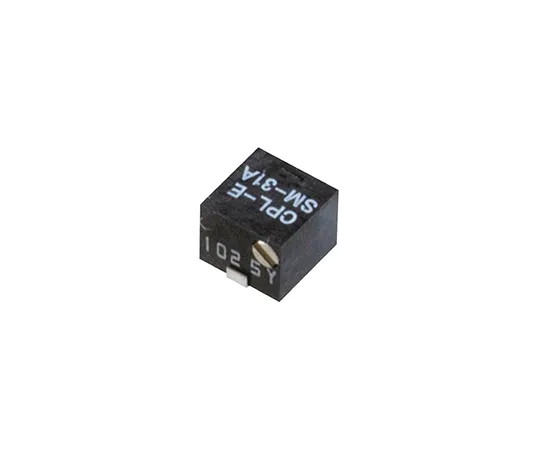

63-4880-26 Semi-Fixed Resistor 1 kΩ 0.125 W 1 Bag (5 Pieces) SM-31A1kOhm
model:
63-4880-26
brand:
Copal Electronics
Product Description
Product Model: 63-4880-26Product Brand: Copal Electroni […]
Contact Us
Product Details
Product Model: 63-4880-26
Product Brand: Copal Electronics
Features
- Cermet Trimmer SM-31 Series (5 Rotation Type)
- 3 mm size multi-rotation trimmer (5 rotations) Fine adjustment is possible. Soldering by solder reflow is possible. Sealed structure enables cleaning. Lead-free, cadmium-free
Spec
- Number of Pieces: 1 Bag (5 Pieces)
- Maximum resistance: 1 kΩ
- Mounting type: surface mount
- Speed: 5
- bearing: side adjustment
- Rated power: 0.125 W
- Series: SM-31
- *** styles: J-Hook
- Tolerance: +/- 20%
- Temperature coefficient: +/- 100ppm/deg. C
- Depth: 3.9 mm
- Operating temperature Min: -65°C
- Operating temperature mAx: +150°C
- RoHS Compliance Status: Compliance
- Securities Code: 602-3790
