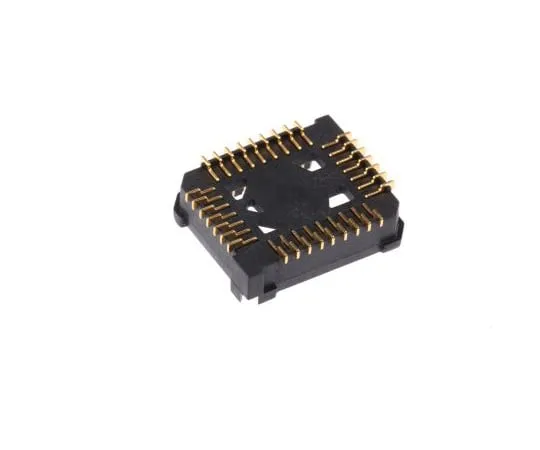

63-4877-65 E-TEC 1.27mm Pitch Female PLCC Socket, 32 Way SMT, Gold over Nickel over Copper Plated Contacts 1A LCC-032-H200-55
Product Description
Product Model: 63-4877-65Product Brand: E-TEC Features […]
Contact Us
Product Details
Product Model: 63-4877-65
Product Brand: E-TEC
Features
- LCC Sockets for surface-mounted soldering. LCC enclosure production sockets compliant with JEDEC Type C standard. Feature SMT output Cut-out body for testing soldering. Each socket is supplied with a retention clip. Contacts in gold-plated beryllium copper over nickel. Diagonal slots for removal of the component using the extraction tool stock no. ; 104-4310 104-4310 .
Spec
- Quantity：1piece
- G***er : Female
- Number of Contacts : 32
- Body Orientation : Straight
- Contact Material : Beryllium Copper
- Pitch : 1.27mm
- Contact Plating : Gold over Nickel over Copper
- Mounting Type : Surface Mount
- Termination Method : Solder
- Current Rating : 1A
- Housing Material : Polymer
- Height : 5.4mm
- Maximum Operating Temperature : +125°C
- Minimum Operating Temperature : -55°C
- CODE No.:600-7811
