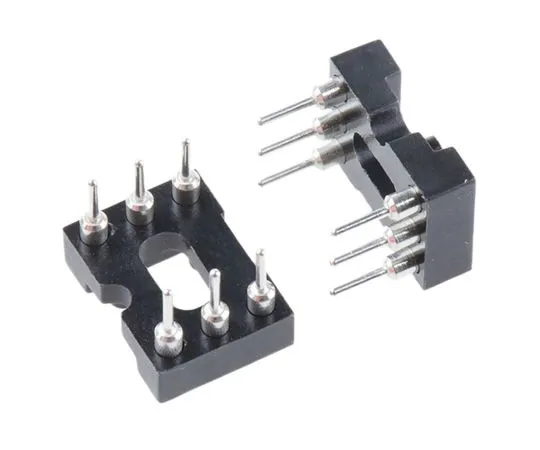

63-4877-61 E-TEC 2.54mm Pitch Vertical 6 Way, Through Hole Turned Pin Open Frame IC Dip Socket POS-306-S001-95
Product Description
Product Model: 63-4877-61Product Brand: E-TEC Features […]
Contact Us
Product Details
Product Model: 63-4877-61
Product Brand: E-TEC
Features
- Precision Gold Contacts. Precision DIP sockets with gold plated 'tulip' grip contacts ; tin plated pins Prevents capilliary action with solder ; flux on PCB's Open frame construction maximises heat dissipation Temperature Range: -65°C to +125°C Contacts: Beryllium copper Pins: Brass 100 Cycles (Contact Life) Insulation Resistance: 5 x 109 Ω (at 500Vdc) (Std and hi-Temp); >104 MΩ (at 500Vdc) (FR4 Epoxy)
Spec
- Quantity：1set(67pieces)
- Number of Contacts : 6
- Mounting Type : Through Hole
- Pin Type : Turned
- Pitch : 2.54mm
- Row Width : 7.62mm
- Frame Type : Open Frame
- Termination Method : Solder
- Contact Plating : Gold, Tin
- Orientation : Vertical
- Length : 7.6mm
- Width : 4.45mm
- Housing Material : PBT
- CODE No.:600-7754
