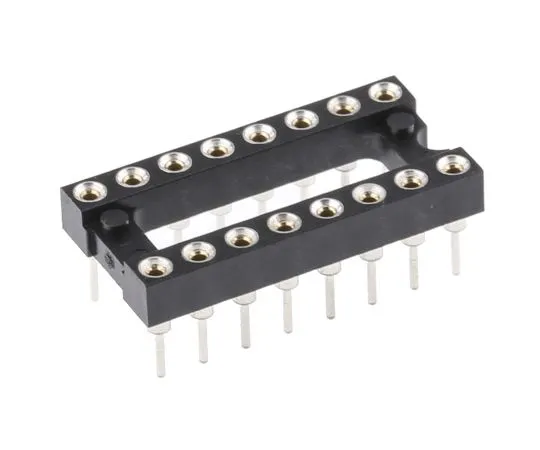

63-4877-56 E-TEC 2.54mm Pitch Vertical 16 Way, Through Hole Turned Pin Open Frame IC Dip Socket, 3A POS-316-S001-95 X25
Product Description
Product Model: 63-4877-56Product Brand: E-TEC Features […]
Contact Us
Product Details
Product Model: 63-4877-56
Product Brand: E-TEC
Features
- Precision Gold Contacts. Precision DIP sockets with gold plated 'tulip' grip contacts ; tin plated pins Prevents capilliary action with solder ; flux on PCB's Open frame construction maximises heat dissipation Temperature Range: -65°C to +125°C Contacts: Beryllium copper Pins: Brass 100 Cycles (Contact Life) Insulation Resistance: 5 x 109 Ω (at 500Vdc) (Std and hi-Temp); >104 MΩ (at 500Vdc) (FR4 Epoxy)
Spec
- Quantity：1set(25pieces)
- Number of Contacts : 16
- Mounting Type : Through Hole
- Pin Type : Turned
- Pitch : 2.54mm
- Row Width : 7.62mm
- Frame Type : Open Frame
- Termination Method : Solder
- Contact Plating : Gold, Tin
- Current Rating : 3A
- Orientation : Vertical
- Length : 20.3mm
- Depth : 2.8mm
- Housing Material : PBT
- CODE No.:549-4775
