Electronic/Electrical Parts and Controll Equipments

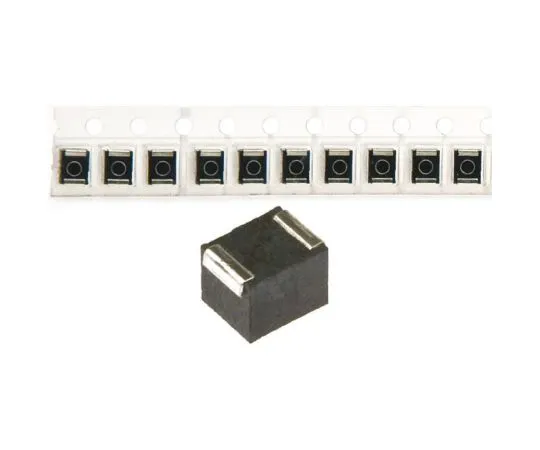

63-4877-09 TDK NLV-PF Series Type 1210 (3225M) Wire-wound SMD Inductor 10 μH ±5% Wire-Wound 150mA Idc Q:30 NLV32T-100J-PF
Product Description
Product Model: 63-4877-09Product Brand: TDK Features TD […]
Contact Us
Product Details
Product Model: 63-4877-09
Product Brand: TDK
Features
- TDK 1210 NLV Series Wire Wound Inductors. SMD wound coil inductors suitable for a wide range of signal line applications High Q factor ensures sharp frequency response Highly heat resistant thermoplastic resin exterior package Operating temperature range -40°C to +105°C Applications include: TVs, VCRs, digital cameras, xDSL, car audio, ECU systems, HDDs, etc
Spec
- Quantity：1bag(25pieces)
- Inductance : 10 μH
- Maximum DC Current : 150mA
- Package/Case : 1210 (3225M)
- Length : 3.2mm
- Depth : 2.5mm
- Height : 2.2mm
- Dimensions : 3.2 x 2.5 x 2.2mm
- Tolerance : ±5%
- Maximum DC Resistance : 2.1Ω
- Series : NLV-PF
- Maximum Self Resonant Frequency : 30MHz
- Maximum Operating Temperature : +105°C
- CODE No.:548-2687
