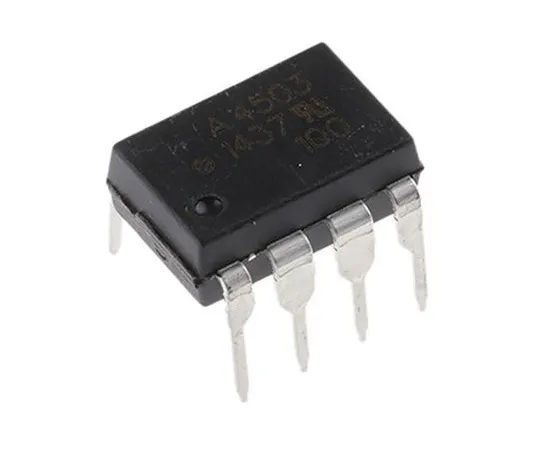

63-4876-17 Broadcom, HCPL-4503-000E DC Input Transistor Output Optocoupler, Through Hole, 8-Pin PDIP HCPL-4503-000E
Product Description
Product Model: 63-4876-17Product Brand: Broadcom Featur […]
Contact Us
Product Details
Product Model: 63-4876-17
Product Brand: Broadcom
Features
- Optocoupler, Intelligent Power Module (IPM) Interface, Avago Technologies. Avago Technologies optocouplers for IPM (Intelligent Power Module) interface exhibit short propagation delay, fast IGBT switching, high common mode transient rejection and wide operating temperature range. Avago Technologies R2Coupler™ isolation products provide the reinforced insulation and reliability needed for critical automotive and high temperature applications.
Spec
- Quantity：1piece
- Mounting Type : Through Hole
- Output Device : Transistor
- Maximum Forward Voltage : 1.7V
- Number of Channels : 1
- Number of Pins : 8
- Package Type : PDIP
- Input Current Type : DC
- Maximum Input Current : 25 mA
- Isolation Voltage : 3.75 kVrms
- Logic Output : Yes
- Maximum Current Transfer Ratio : 50%
- Minimum Current Transfer Ratio : 19 %
- CODE No.:547-3712
