Electronic/Electrical Parts and Controll Equipments

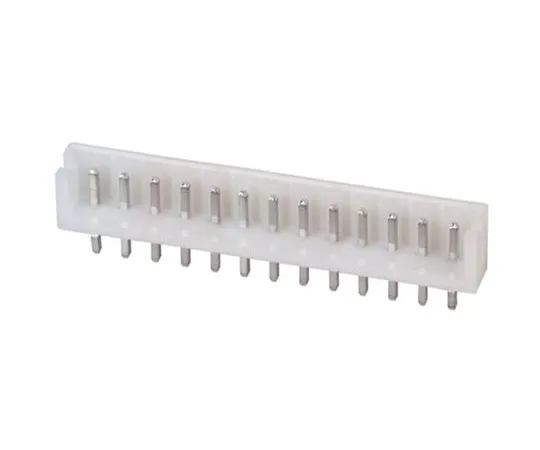

63-4875-39 JST EH, 13 Way, 1 Row, Straight PCB Header B13B-EH (LF)(SN)
Product Description
Product Model: 63-4875-39Product Brand: JST Features UL […]
Contact Us
Product Details
Product Model: 63-4875-39
Product Brand: JST
Features
- UL File No. 60389, CSA File No. LR20812. Manufacturer ‘s part numbers BxxB-EH-A have 3.2mm long pins; part numbers BxxB-EH have 4.0mm long pins. EH Series Straight Headers. JST EH series 2.5mm pitch single-row shrouded top-entry (straight) PCB headers. They have integral keying which ensures correct polarisation when mated. For corresponding crimp socket housings see RS ; 311-6209 311-6209 typical; for IDC socket housings see RS ; 311-6287 311-6287 typical.
Spec
- Quantity：1bag(10pieces)
- Series : EH
- Pitch : 2.5mm
- Number of Contacts : 13
- Number of Rows : 1
- Body Orientation : Straight
- Shrouded/Unshrouded : Shrouded
- Mounting Type : Through Hole
- Termination Method : Solder
- Type : Wire to Board
- Voltage Rating : 250 V ac/dc
- CODE No.:546-8338
