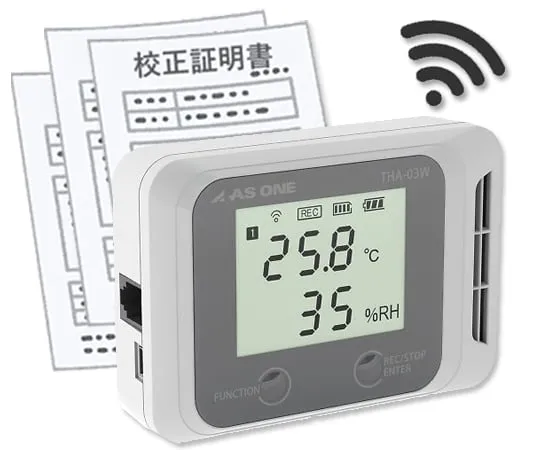

4-790-01-57 Digital Temperature and Humidity Logger (Deka Moni Wi-Fi type) with Chinese Calibration Certificate THA-03W
Product Description
Product Model: 4-790-01-57Product Brand: AS ONE Corpora […]
Contact Us
Product Details
Product Model: 4-790-01-57
Product Brand: AS ONE Corporation
Features
- A model with Wi-Fi wireless connection enabled in the memory type.
- Large digital display with compact body. Convenient for stationary type due to the depth of the body.
- The relative humidity over a wide humidity range (10~90%RH) is measured at ±3%RH (Typ).
- You can check the battery level at a glance.
- You can check the remaining memory at a glance.
- Monitor display is updated up to 30 seconds. It is possible to select from 5 pattern display modes.
- The console's setup application (THA Series Setter) can be ***d to retrieve logs recorded from the USB terminal, which can also be ***d as a power supply port.
- The optional sensor can be ***d to measure remote locations, making it possible to measure 2CH with the main unit.
- The PC monitoring application (THA Logmonitor) enables real-time graph/list display over Wi-Fi and USB. (Recording interval for monitoring is from 5 seconds) (Up to 6 temperature and humidity can be measured.). Up to 3 units when using inside/outside/up to 6 units only inside) * Log extraction via Wi-Fi is also possible. (Not in Record)
Spec
- Operating temperature and humidity range: Temperature/0 ~ 60 degrees C, Humidity/90% RH or less (no condensation)
- Measured temperature and humidity range: Temperature/- 10 ~ 70 degrees C, Humidity/0 ~ 90% RH
- Display resolution: Temperature/0.1 °C, Humidity/1% RH
- Display accuracy:
- Temperature/+/- 0.3 degrees C (Typ), +/- 0.5 degrees C (Max) (0 ~ 60 degrees C)
- Humidity/+/- 3% RH (Typ), +/- 5% RH (Max) (25 degrees C, 10 ~ 90% RH)
- Sampling interval: 1 sec/5 sec/10 sec/30 sec/1 min/5 min/10 min/30 min/60 min
- Number of recorded points: Up to approximately 8,000 (1 point per 1 sampling period)
- Sensors:
- Temperature sensing part/bandgap semiconductor sensor
- Moisture Sensitive Part/Capacitive Thin-Film Humidity Sensor
- Size: Body/110 x 32 x 77 mm, Display/52 x 40 mm
- Power supply: 4 AA alkaline batteries (included for testing)
- Connection terminal: Modular jack for external sensor, USB (Mini-B)
- Weight: About 250 g (including 4 batteries)
- Material: ABS
- Application software:
- For body setup/THA Series Setter
- PC Monitoring/THA Logmonitor
- Both run on Windows ® 7/8/8.1/10/11 (32/64 bit). < a href="https://axel.as-1.co.jp/images/pdf/pb/4-790-01/THASetter_2.0.1.zip" rel="noopener nofollow" target="_blank" >
- Download the phone setup application (THA Series Setter 2.0.1) here. < /a > < a href="https://axel.as-1.co.jp/images/pdf/pb/4-790-01/THA_Log_Monitor_v2.01.zip" rel="noopener nofollow" target="_blank" >
- Download the PC monitoring application (THA Logmonitor v 2.01) here < /a >
