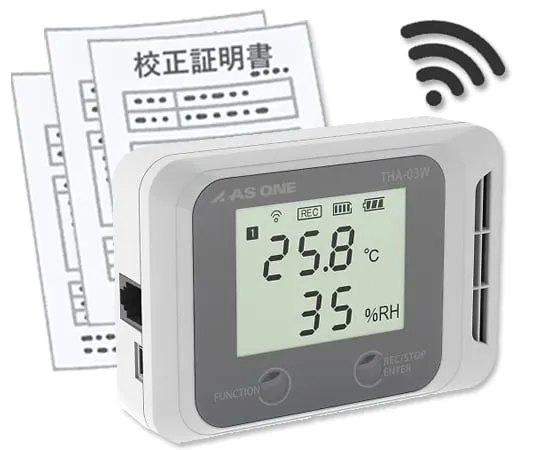

4-790-01-20 Digital Temperature/Humidity Logger (Dekamoni, Wi-Fi type) with calibration certificate THA-03W
Product Description
Product Model: 4-790-01-20Product Brand: AS ONE Corpora […]
Contact Us
Product Details
Product Model: 4-790-01-20
Product Brand: AS ONE Corporation
Features
- This model has Wi-Fi wireless connection in the memory type.
- Compact body but large digital display. The body's depth makes it convenient for stationary types.
- The relative humidity over a wide humidity range (10~90%RH) is measured in +/- 3%RH(Typ).
- You can check the battery level at a glance.
- You can check the estimated amount of memory at a glance.
- Monitor display can be updated up to 30 seconds. You can choose from five display modes.
- You can retrieve recorded logs from the USB port using the THA Series Setter application, and this port can also be ***d as a power supply port.
- Measurements can be made at a distance using a sensor sold separately, which enables 2CH measurement with the body.
- The PC monitoring application (THA Logmonitor) enables real-time graph/list display via Wi-Fi and USB. (Recording interval for monitoring is from 5 seconds) (Up to 6 temperature and humidity readings possible. Maximum of 3 for internal/external ***/Maximum of 6 for internal *** only) * Log extraction via Wi-Fi is also possible. (Not available during recording)
Spec
- Operating temperature and humidity range: Temperature/0 ~ 60 degrees C, Humidity/90% RH or less (no condensation)
- Measured temperature and humidity range: temperature/- 10 ~ 70 degrees C, humidity/0 ~ 90% RH
- Display resolution: Temperature/0.1 deg C, Humidity/1% RH
- Display accuracy:
- Temperature/+/- 0.3 degrees C (Typ), +/- 0.5 degrees C (Max) (0 ~ 60 degrees C)
- Humidity/+/- 3% RH (Typ), +/- 5% RH (Max) (25 degrees C, 10 ~ 90% RH)
- Sampling interval: 1 sec/5 sec/10 sec/30 sec/1 min/5 min/10 min/30 min/60 min
- Number of recorded points: Up to about 8,000 (1 point per 1 sampling period)
- Sensors:
- Temperature sensing part/bandgap semiconductor sensor
- Moisture Sensitive/Capacitive Thin-Film Humidity Sensor
- Size: Body/110 x 32 x 77 mm, Display/52 x 40 mm
- Power supply: 4 AA alkaline batteries (included for testing)
- Connection terminal: Modular jack for external sensor, USB (Mini-B)
- Weight: About 250 g (including 4 batteries)
- Material: ABS
- Application software:
- For body setup/THA Series Setter
- PC Monitoring/THA Logmonitor
- Both run on Windows ® 7/8/8.1/10/11 (32/64 bit). < a href="https://axel.as-1.co.jp/images/pdf/pb/4-790-01/THASetter_2.0.1.zip" rel="noopener nofollow" target="_blank" >
- Download the phone setup application (THA Series Setter 2.0.1) here. < /a > < a href="https://axel.as-1.co.jp/images/pdf/pb/4-790-01/THA_Log_Monitor_v2.01.zip" rel="noopener nofollow" target="_blank" >
- Download the PC monitoring application (THA Logmonitor v 2.01) here < /a >
