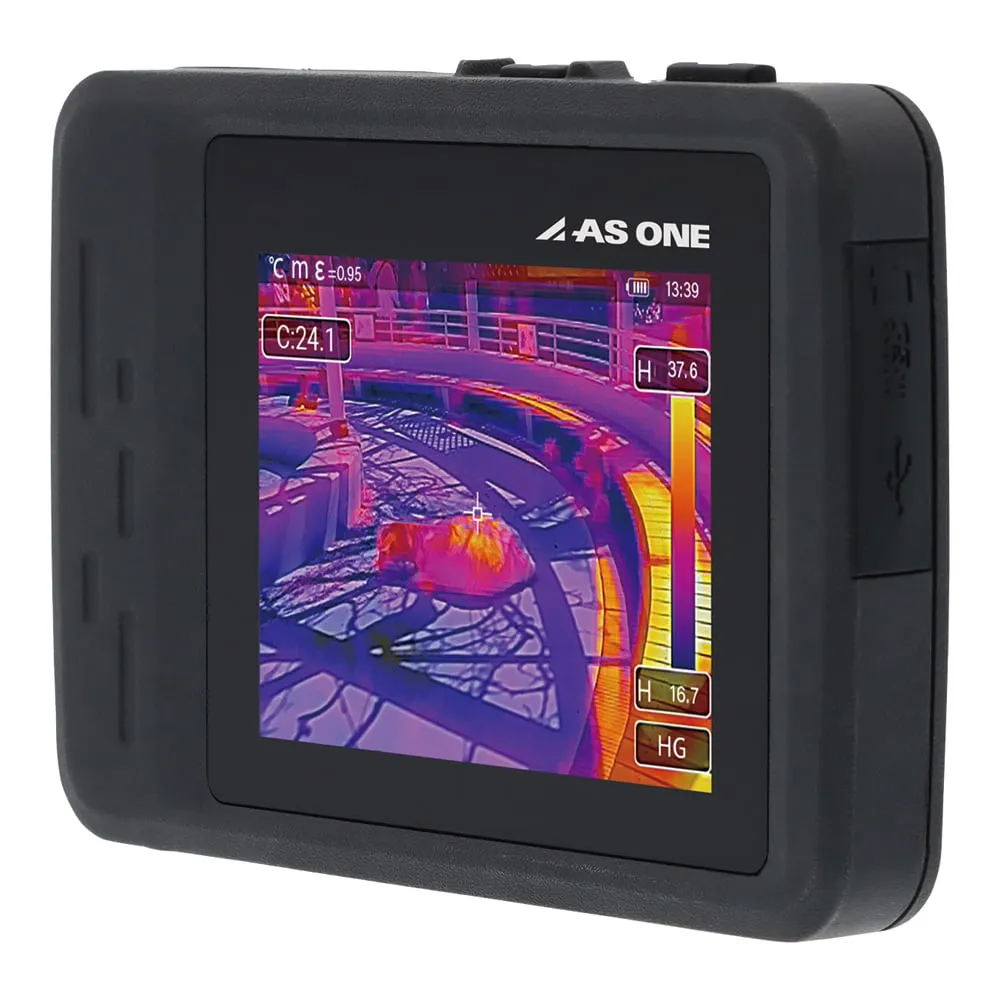

4-6423-01 Infrared Thermography RFS
Product Description
Product Model: 4-6423-01Product Brand: AS ONE Corporati […]
Contact Us
Product Details
Product Model: 4-6423-01
Product Brand: AS ONE Corporation
Features
- Equipped with a high-resolution infrared sensor, it can measure a wide range of high resolution, high frame rate and up to 550°C.
- Since the temperature information is retained in the shot still image, it is possible to change the display mode and edit the correction and temperature measurement after shooting.
- In addition to changing the emissivity correction (0.00~1.00), it has numerical correction functions for ambient temperature, reflection temperature, air humidity, delta temperature and distance.
- With touch panel operation, you can intuitively select the place where you want to check the temperature.
- It is an application compatible with smartphones and PCs, and allows remote control and screen sharing via PCs.
Spec
- Resolution: 120 x 90 pixels
- Resolution: 0.1°C
- Temperature measurement range: -20°C to +150°C, 0°C to +550°C (minimum display unit: 0.1°C)
- Temperature measurement accuracy: ±3%rdg or ±3 deg. C, whichever is greater.
- Emissivity correction: 0.00~1.00 (variable)
- Measurement wavelength: 8~14 μm
- Viewing angle: 50° x 37°
- Fixed minimum focal length: 0.5 m
- Frame rate: 50 Hz
- Display: 3.5 inches color LCD (640 x 480 capacitive touch panel)
- Memory: 3.4GB internal storage, 32GB microSD card (included)
- Image formats: still image/HIR (thermal image format), JPEG (640 x 480 pixels)
- VIDEO: MP4 (480 x 360 pixels)
- Power: 3.7 V rechargeable lithium battery (1500mAh), USB connection (image transfer/battery charging)
- Dustproof/Waterproof: IP54
- Size: Approx. 129 x 22 x 87 mm
- Weight: about 200 g
- Included Items: Carrying case, USB cable, strap, micro SD card (32GB), SD card adapter, SD card case
