Spec

• Temperature Control System: PID+DAC (Differential Approach Control) Auto Tuning System
• Minimum temperature setting: 0.1°C steps
• Heater Capacity: 600 W (SUS Spiral Sheath Heater)
• Chiller: Sealed Rotary Compressor (150 W) (Refrigerant R134a)
• Cooling Capacity: 50 Hz/255.8 W (220kcal/h) at+20°C, 60 Hz/290.7 W (250kcal/h) at+20°C
• Pump Capacity: Maximum Flow Rate/3 L/min, Pump Head Approx. 1.2 m
• Circulation Nozzle Diameter: Outer Diameter φ12 mm
• Circulation Capacity: 3 L/min, Pump Head 1.5 m
• Size: 172 x 385 (including drain/430) x 418 mm
• L Type Hose Port: Outer Diameter/φ12 mm, Inner Diameter/φ7 mm
• Safety Device: Overcurrent Breaker, Overheat Prevention Sensor, Water Level Sensor, Float Type Drain Prevention
• Power: 100 VAC 50/60Hz 8 A
• Power Cord Length: 2 m (3P Plug/Adapter Included)
• Weight: Approx. 18 kg
• Temperature range (°C): -10 to +60
• Temperature accuracy (°C): ±0.1~0.5
• *We need priming water.

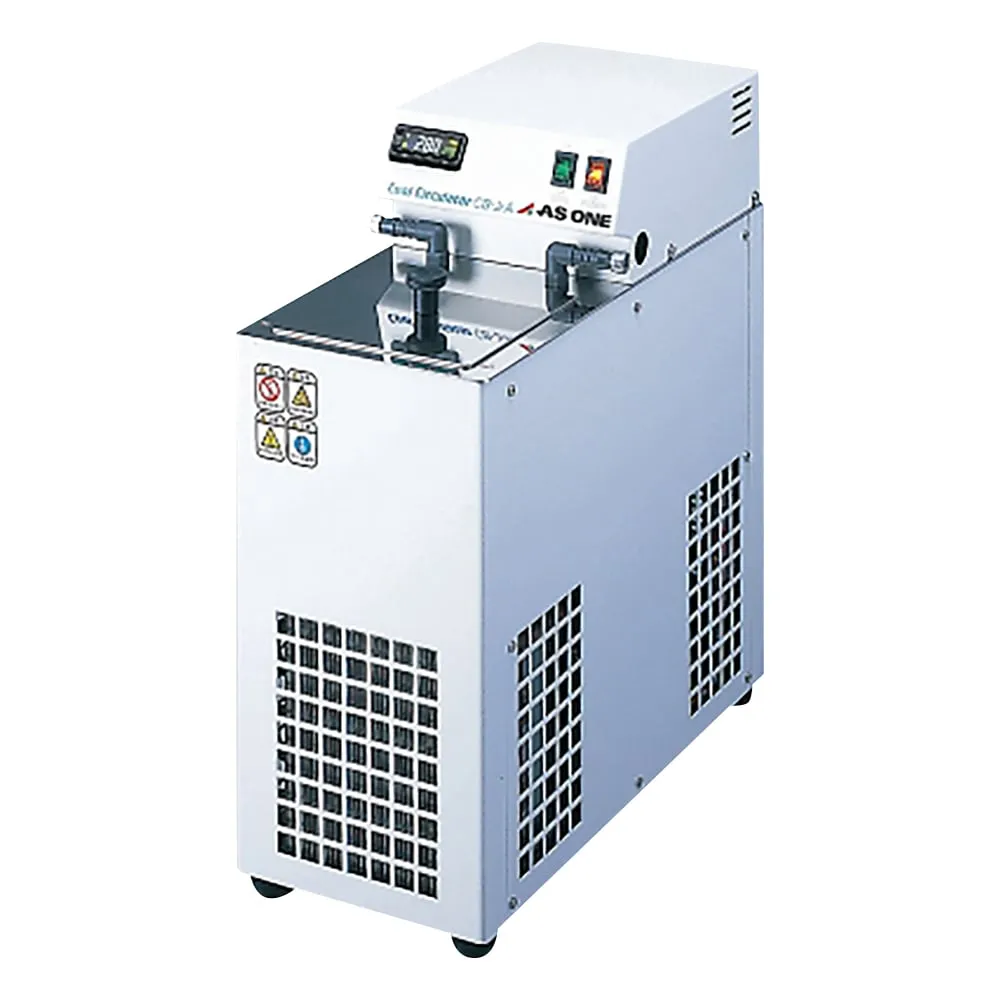

• Model Number: CB-Jr.A
• This product is compatible with the validation service (IQ/OQ). Please contact us.
• *The validation service is a service where installation qualification (IQ) and operation qualification (OQ) are performed at the customer's site and an inspection report is submitted.
