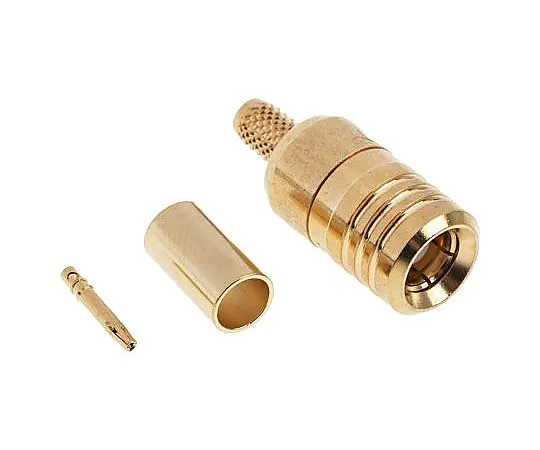

63-4874-21 RS Cable Mount Subminiature SMB Connector, 50Ω Impedance, Crimp Termination, RG174/U cable type 546-3361
Product Description
Product Model: 63-4874-21Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-4874-21
Product Brand: RS PRO
Features
- RS 50 Ohm SMB RF Coaxial Crimp Plug Connector. Brought to you under the trusted RS Brand, this 50 Ohm SMB RF coaxial plug connector has a crimp termination. The SMB RF coax plug connector has a gold plated body, gold plated centre contact and is for *** with RG174/U coaxial cable for a reliable and quick connect/disconnect system. Features and Benefits: A working Voltage of 500Vdc or ac (peak) A proof Voltage of 1500Vdc or ac (peak) An insulation Resistance of >5x109Ω A temperature Range -55°C to +155°C
Spec
- Quantity：1piece
- G***er : Female
- Body Orientation : Straight
- Termination Method : Crimp
- Mounting Type : Cable Mount
- Size : Subminiature
- Body Plating : Gold
- Cable Type : RG174/U
- Impedance : 50Ω
- Operating Frequency : 4GHz
- Contact Plating : Gold
- Contact Material : Beryllium Copper
- CODE No.:546-3361
