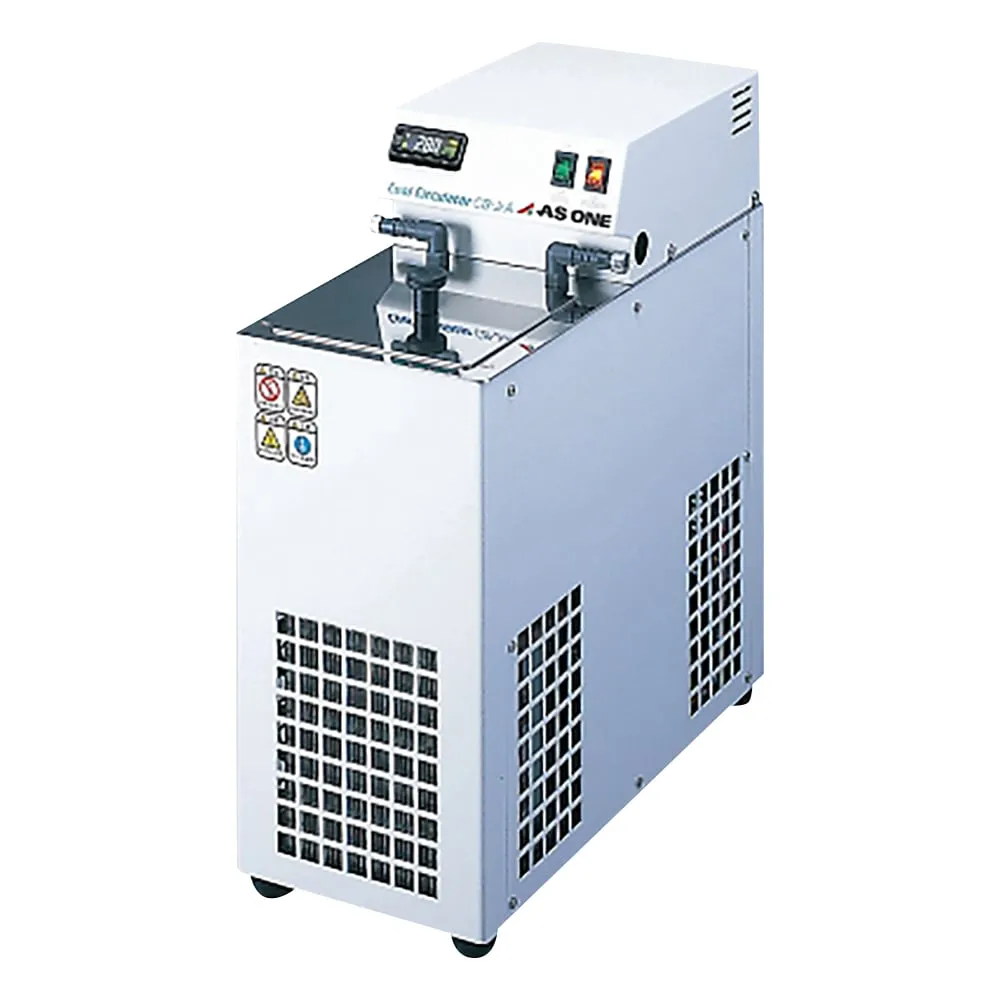

1-5145-11 Desktop Constant-Low-Temperature Water Circulator CB-JR. A CB-Jr.A
Product Description
Product Model: 1-5145-11Product Brand: AS ONE Corporati […]
Contact Us
Product Details
Product Model: 1-5145-11
Product Brand: AS ONE Corporation
Features
- The unique PID+DAC auto-tuning control provides stable and accurate temperature control at all times.
Spec
- Temperature control system: PID + DAC (differentiation approach control), auto-tuning method
- Minimum temperature settings: 0.1℃ step
- Heater capacity: 600W (SUS spiral sheathed heater)
- Refrigerating machine: Sealed type rotary compressor (150W) (refrigerant R134a)
- Cooling capacity: 50Hz/255.8W (220kcal/h) (at +20℃), 60Hz/290.7W (250kcal/h) (at +20℃)
- Pump capacity: Maximum flow rate/3L/min, head about 1.2m
- Circulating nozzle diameter: Outer diameter φ12mm
- Circulation capacity: 3L/min, head 1.5m
- Size: 172 x 385 (including drain /430) x 418mm
- L type hose port: Outer diameter/φ12mm, Inner diameter/φ7mm
- Safety device: Overcurrent breaker, overheat prevention sensor, water level sensor, float type no-water burning prevention
- Power supply: 100ACV 50/60Hz 8A
- Power cord length: 2m (3P plug, with conversion adapter)
- Weight: Approx 18kg
- Temperature range (℃): -10 to +60
- Temperature accuracy (℃): ±0.1 - 0.5
- *Priming water is required.
- Model number: CB-Jr.A
