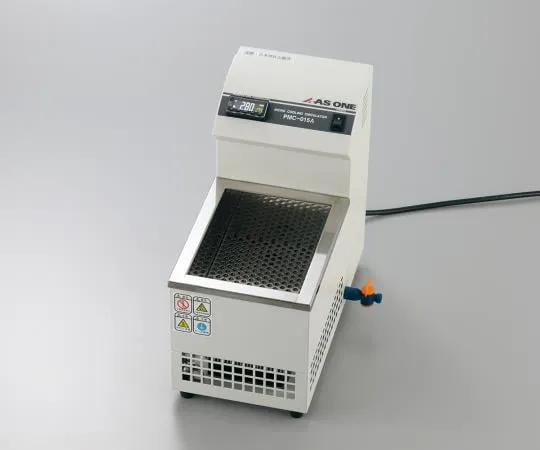

1-5138-11-28 Electronic cooling microcirculator with Pre-shipment Validation PMC015A
Product Description
Product Model: 1-5138-11-28Product Brand: AS ONE Corpor […]
Contact Us
Product Details
Product Model: 1-5138-11-28
Product Brand: AS ONE Corporation
Features
- Ultra-compact low temperature constant temperature water bath using Peltier element.
- It is an ultra-small thermostatic water bath suitable for micro test tube and ELISA plate experiments.
- It has a cooling function with a Peltier module, so you can experiment in a temperature range lower than normal temperature.
- PID+DAC (differential approach control) enables constant temperature control.
Spec
- Validated products are Azuwan original services that conduct FAT (Factory Acceptance Test) at Azuwan before shipping.
- Validate (FAT) before shipping.
- After receiving the order, a FAT instruction form (plan) is sent to the ***r, and after the signature is returned, the FAT is performed.
- App***ix: FAT report/Calibration Certificate of ***d measuring instrument copied
- *I am attaching Azwan's original FAT instruction manual (see the sample at the bottom left of the Screen).
- Temperature point: 1 point of 37 degrees Celsius
- Temperature setting range: 0 ~ 60 degrees C
- Minimum temperature setting unit: 0.1 degrees C
- Temperature control accuracy: +/- 0.1 ~ 0.5 degrees C
- Temperature control system: PID + DAC auto tuning control, digital display
- Cooling system: High efficiency TEC thermo module (4P)
- Safety device: Overcurrent f***, overheat prevention sensor
- Capacity: About 1.5 L
- Materials: Water tank/stainless steel, bottom plate/aluminum 52 s (hard anodized)
- Power supply: 100 VAC 50/60 Hz 4 A
- Power cord length: 2 m (3P type with conversion adapter)
- Weight: 5.5 kg
- Accessories: Stainless steel trestle
- External dimensions (mm): 160 x 315 x 300
- Tank internal dimensions (mm): 130 x 170 x 80
- Local validation services (IQ/OQ) are also available. Please contact us.
- *The on-site validation service is a service that performs installation qualification (IQ) and operational performance qualification (OQ) at the installation site and submits an inspection form.
- *If you would like to request a local IQOQ, please contact us separately. We need your installation address for the estimate.
