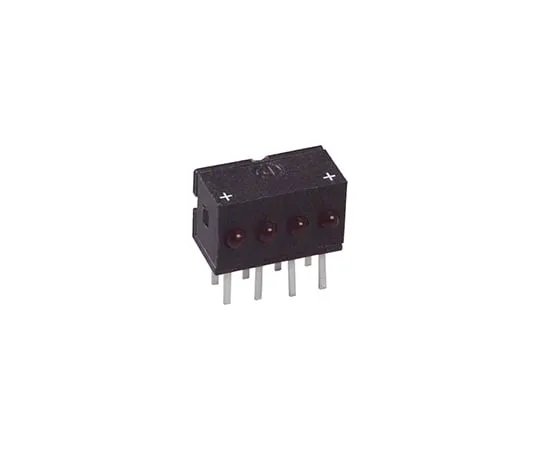

63-4873-67 Dialight 555-4001F, Red Right Angle PCB LED Indicator, 4 LEDs, Through Hole 2 V 555-4001F
Product Description
Product Model: 63-4873-67Product Brand: Dialight Featur […]
Contact Us
Product Details
Product Model: 63-4873-67
Product Brand: Dialight
Features
- Dialight 555-4 Series LED CBI® Circuit Board Indicators. The 555-4xxx series, from Dialight, are quad LED CBI® circuit board indicators. These PCB LED indicators contain four 2mm (T-3/4) LEDs within a black plastic housing. The housing sits the LEDs at a right angle to the board whilst providing a high contrast between itself and the LED. The 555-4xxx is available with general purpose and integral resistor LED types.. Features of the 555-4xxx PCB LED indicators: 4 x 2mm (T-3/4) LEDs Variety of colours Black plastic housing Right angle Through-hole mounting Compatible with 555-2xxx Single Block
Spec
- Quantity：1piece
- LED Colours : Red
- Number of LEDs : 4
- Mounting Type : Through Hole
- Supply Voltage : 2 V
- Number of Pins : 8
- Viewing Angle : 40 °
- Dominant Wavelength : 650 nm
- LED Orientation : Right Angle
- Dimensions : 10.29 x 6.22 x 6.35mm
- Length : 10.29mm
- Width : 6.22mm
- Height : 6.35mm
- Intensity : 1.2mcd
- CODE No.:546-1157
