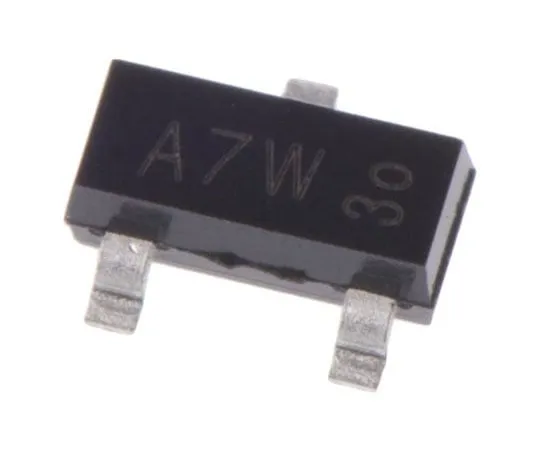

63-4870-96 Nexperia 100V 215mA, Dual Silicon Junction Diode, 3-Pin SOT-23 BAV99,215 BAV99,215
Product Description
Product Model: 63-4870-96Product Brand: Nexperia Featur […]
Contact Us
Product Details
Product Model: 63-4870-96
Product Brand: Nexperia
Features
- Nexperia BAV99 High-Speed Switching Diodes. The Nexperia BAV99 is a series of high-speed switching diodes. They come in a surface mounted (SMD) plastic package which is available in various size. The BAV99 switching diodes are ideal for high-speed switching and reverse polarity protection applications. They are also AEC-Q101 qualified and therefore suitable for automotive applications. Features: Switching speed: trr ≤ 4 ns Low leakage current Low capacitance Versions Available: BAV99 - SOT23 (TO-236AB) BAV99S - SOT363 (SC-88) BAV99W - SOT323 (SC-70)
Spec
- Quantity：1bag(20pieces)
- Diode Configuration : Series
- Rectifier Type : Switching
- Peak Reverse Repetitive Voltage : 100V
- Mounting Type : Surface Mount
- Package Type : SOT-23 (TO-236AB)
- Diode Technology : Silicon Junction
- Pin Count : 3
- Maximum Forward Voltage Drop : 1.25V
- Peak Reverse Recovery Time : 4ns
- Peak Non-Repetitive Forward Surge Current : 4A
- CODE No.:544-4534
