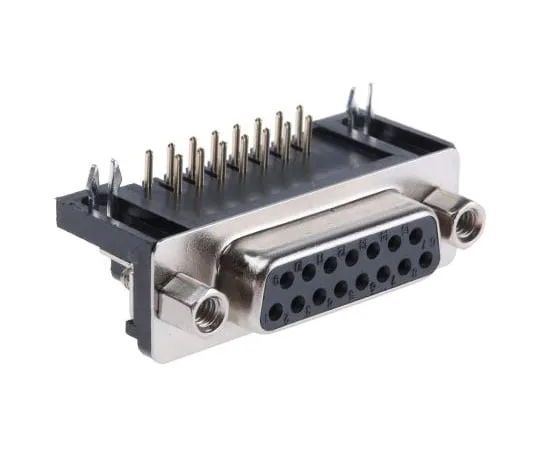

63-4870-76 RS 15 Way Right Angle Rectangular Connector Socket 544-3979
Product Description
Product Model: 63-4870-76Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-4870-76
Product Brand: RS PRO
Features
- 90° PCB, European Footprint (10.6mm). Locking lugs retain connectors during PCB assembly thereby reducing costs Shells are tinned with dimpled plug/shells for effective ground continuity 4-40 UNC jack inserts are incorporated
Spec
- Quantity：1piece
- Number of Contacts : 15
- G***er : Female
- Termination Type : Solder
- Number of Poles : 15
- Current Rating : 3A
- Voltage Rating : 350 V dc
- Body Orientation : Right Angle
- Housing Material : Thermoplastic
- Length : 39.14mm
- Depth : 20.6mm
- Dimensions : 39.14 x 20.6mm
- Minimum Operating Temperature : -55°C
- CODE No.:544-3979
