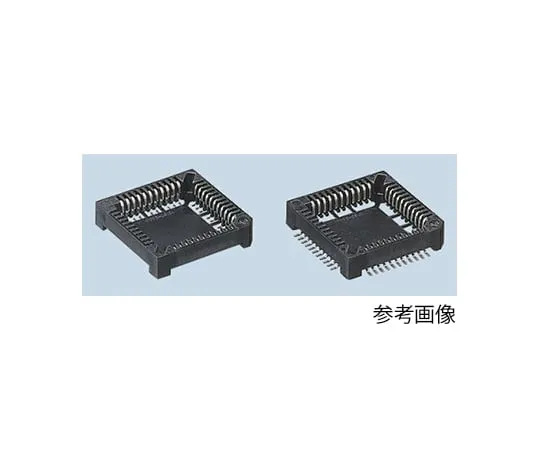

63-4869-46 Yamaichi 1.27mm Pitch Female PLCC Socket, 44 Way SMT, Tin Bismuth Alloy Plated Contacts 1A IC160Z-0444-300
Product Description
Product Model: 63-4869-46Product Brand: Yamaichi Featur […]
Contact Us
Product Details
Product Model: 63-4869-46
Product Brand: Yamaichi
Features
- Terminals must not be bent or folded. Details including product dimensions and foot pattern dimensions can be obtained from the manufacturer. PLCC socket IC 160 series Surface-mounted type. SMT Type, PLCC-Mount Socket Contact shape with foot pattern identical with IC (240-type) 2 varieties with manually-solderable protruding terminals (300-type) Low-profile design
Spec
- Quantity：1bag(5pieces)
- G***er : Female
- Number of Contacts : 44
- Body Orientation : Straight
- Contact Material : Copper Alloy
- Pitch : 1.27mm
- Contact Plating : Tin Bismuth Alloy
- Mounting Type : Surface Mount
- Termination Method : Solder
- Current Rating : 1A
- Housing Material : Polyamide
- Height : 4.8mm
- Maximum Operating Temperature : +85°C
- Minimum Operating Temperature : -55°C
- CODE No.:543-3512
