Electronic/Electrical Parts and Controll Equipments

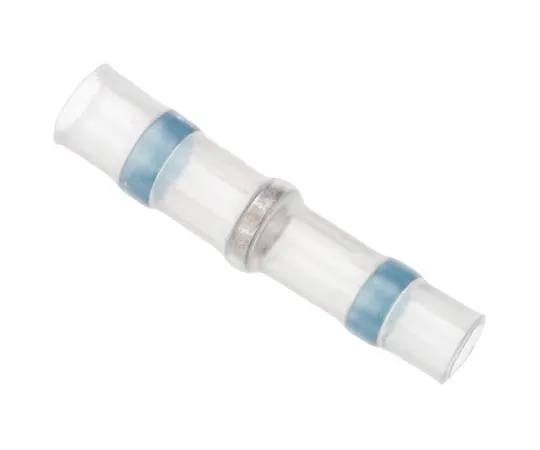

63-4868-17 TE Connectivity Transparent Solder Sleeve 1 → 3mm B-155-03
model:
63-4868-17
brand:
TE Connectivity
Product Description
Product Model: 63-4868-17Product Brand: TE Connectivity […]
Contact Us
Product Details
Product Model: 63-4868-17
Product Brand: TE Connectivity
Features
- Solder Sleeves®. A one piece soldering system for jointing signal cables and terminating cable screens. The system consists of heat shrinkable sleeve containing a predetermined amount of fluxed solder and a thermoplastic sealing insert at each ***. The solder sleeve is placed over the joint to be made and the sleeve is heated by a heat gun. The sleeve shrinks, the sealing inserts melt and flow and the solder starts to melt. Heating is continued until the solder is seen to fully melt and flow.,Temperature range -55°C to +125°C.
Spec
- Quantity：1bag(100pieces)
- Minimum Cable Diameter : 1mm
- Maximum Cable Diameter : 3mm
- Sleeve Length : 24.5mm
- Material : Polyolefin
- Minimum Operating Temperature : -55°C
- Maximum Operating Temperature : +125°C
- Quantity : 1
- Colour : Transparent
- CODE No.:542-5690
