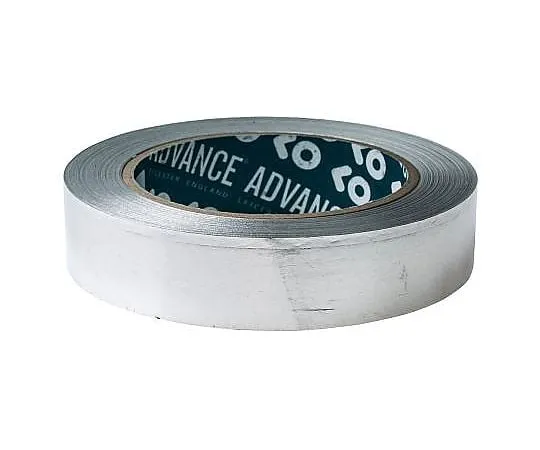

63-4868-12 Advance Tapes AT521 Conductive Aluminium Tape 0.07mm, W.25mm, L.33m 231911
Electronic/Electrical Parts and Controll Equipments

63-4868-12 Advance Tapes AT521 Conductive Aluminium Tape 0.07mm, W.25mm, L.33m 231911

model: 63-4868-12
brand: Advance Tapes

Product Description

Product Model: 63-4868-12Product Brand: Advance Tapes F […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-4868-12
Product Brand: Advance Tapes

Features

  • Always think about the galvanic compatibility before using the AT521 tapes. Refer to the datasheet for more information on the tapes. AT521 40μ EMI/RFI Conductive Tape. The Advance Tapes AT521 40 μ aluminium foil shielding tape has been designed to provide you with good shielding and conductivity through its removable silicone liner. The foil tapes are easy to unwind, easy to *** and are aesthetically pleasing. Features and Benefits. Good chemical, heat, acid and alkali resistance Good resistance to high and low temperatures The foil construction is tested in-ho*** and conforms to the flame retardant requirement part only of UL510 Tested in accordance with ASTM D-1000 latest issue, BS EN 60454 - Part 2 test methods (Formerly VDE 0340,BS 3924). Tested and meets military specification MIL – T – 47012. Typical Applications. Use the AT521 tape for your EMI/RFI and static shielding

Spec

  • Quantity:1roll(33m)
  • Total Thickness : 0.07mm
  • Foil Thickness : 0.04mm
  • Width : 25mm
  • Length : 33m
  • Adhesion Strength : 4.5 N/cm
  • Adhesive Material : Acrylic
  • Tensile Strength : 25N/cm
  • Conductivity : Conductive
  • Maximum Temperature Resistance : +155°C
  • Minimum Temperature Resistance : -20°C
  • Complies with EN Legislation : BS EN 60454 - Part 2
  • Model Number : AT521
  • CODE No.:542-5454
