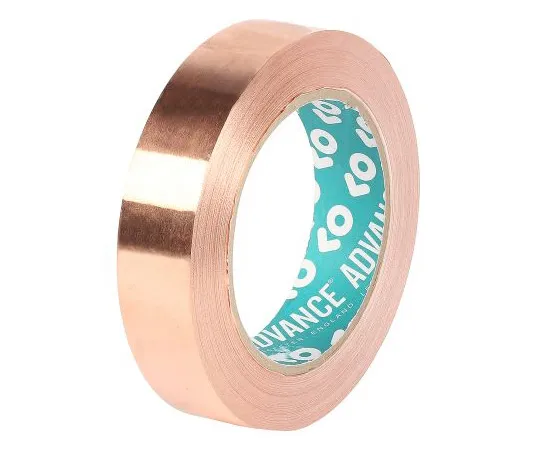

63-4868-10 Advance Tapes AT528 Conductive Copper Tape, 25mm x 33m 231997
Electronic/Electrical Parts and Controll Equipments

63-4868-10 Advance Tapes AT528 Conductive Copper Tape, 25mm x 33m 231997

model: 63-4868-10
brand: Advance Tapes

Product Description

Product Model: 63-4868-10Product Brand: Advance Tapes F […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-4868-10
Product Brand: Advance Tapes

Features

  • AT528 50μ Copper Foil Shielding Tape. 50μ copper foil coated with a electrically conductive acrylic adhesive. 50μ thick copper Greater shielding effectiveness Meets requirements of EN 60454 - part 2 and Mil-T-47012

Spec

  • Quantity:1roll(33m)
  • Total Thickness : 0.07mm
  • Foil Thickness : 0.05mm
  • Width : 25mm
  • Length : 33m
  • Conductivity : Conductive
  • Adhesion Strength : 4.5 N/cm
  • Adhesive Material : Thermosetting Acrylic
  • Material Plating : None
  • Tensile Strength : 85N/cm
  • Maximum Temperature Resistance : +155°C
  • Complies with EN Legislation : BS EN 60454 - Part 2
  • Model Number : AT528
  • CODE No.:542-5375
