Spec

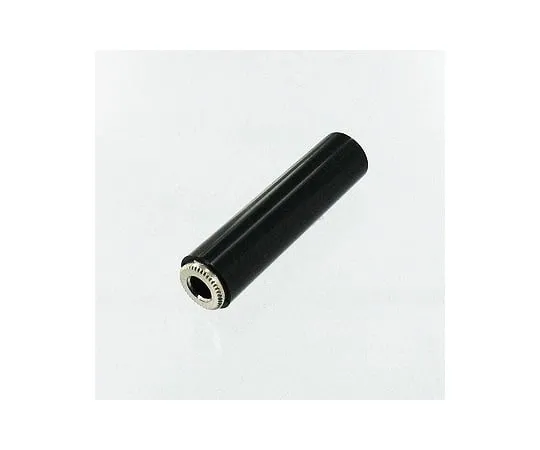

• Connector shape: 6.3 mm jack
• Stereo/Mono: Mono
• Number of poles: -
• Format: Straight
• Terminal processing: -
• Material: Bakelite
• Remarks: -
• □ About Insulation and Non-Insulation
• Panel-mounted RCA pin jacks, phi 3.5 jacks, etc. are divided into "insulated" and "non-insulated" types. Insulated or non-insulated means "whether the GND terminal of the connector contacts the panel" when the connector is attached to the panel.
• For insulated types, the GND terminal of the connector does not connect (contact) with the panel.
• The non-insulated type will be electrically connected if the panel is metallic.
• Insulated connectors are ***d when you don't want to create a "GND (ground) loop."
• *What is a GND loop?
• A loop of wiring, especially a GND line loop, is called a GND loop. When the magnetic flux interchains with the loop, current flows through the GND line, creating a voltage that becomes noise. In such cases, breaking the loop can prevent noise ca***d by interlocking magnetic flux.
